Discover Lithium PROFESSIONAL Batteries:

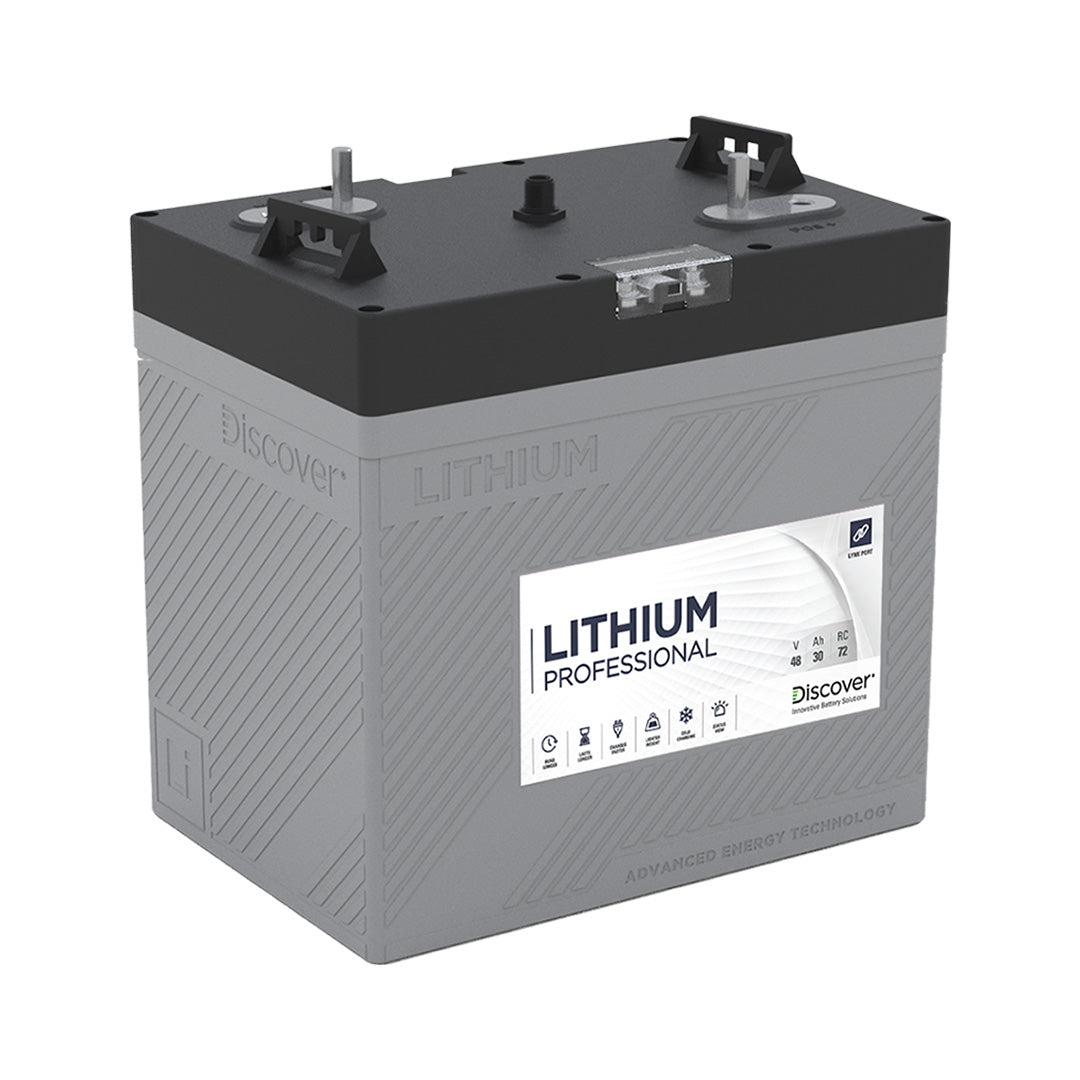

Discover Lithium PROFESSIONAL batteries are purpose built to replace and fit the standard groupings of BCI 6V, 8V and 12V (GC) batteries & designed for hassle-free replacement of popular GC-size batteries in recreational vehicles, work vehicles, autonomous vehicles, floor care machines, and Class 3 walkie-pallet jacks.
With a high-current GEN-4 BMS, the batteries deliver peak power and fast 1C continuous charge and discharge rates, plus they feature COLD CHARGE functionality & self-heating allowing for cold temperature charging to begin from -20°C / -4°F. Independently tested to the highest safety, performance and transportation standards, a single battery will do the work of many lead-acid batteries and unlike lead-acid batteries can be continuously operated in a Partial State of Charge (PSOC) without degrading performance.
IEC62619 Approved for installation in caravan / camping applications.
Brochure here
Data sheet here
Manual here
Warranty here
Dimensions (LxWxH): 260x180x275mm
Note: For closed loop applications Discover Lynk II is required to program and commission battery bank. Discover T Connecter and take off leads are also required to parallel the comms between the batteries. (sold separately)
Note2: Direct connection to DC motors without proper safety protection, motor controllers, and external motor voltage clamping systems (such as high power anti-parallel diodes or braking resistor systems) may result in damage to the internal pack protection system which may result in unsafe situations. Please consult your system designer before directly connecting any motor loads.
Features & benefits:

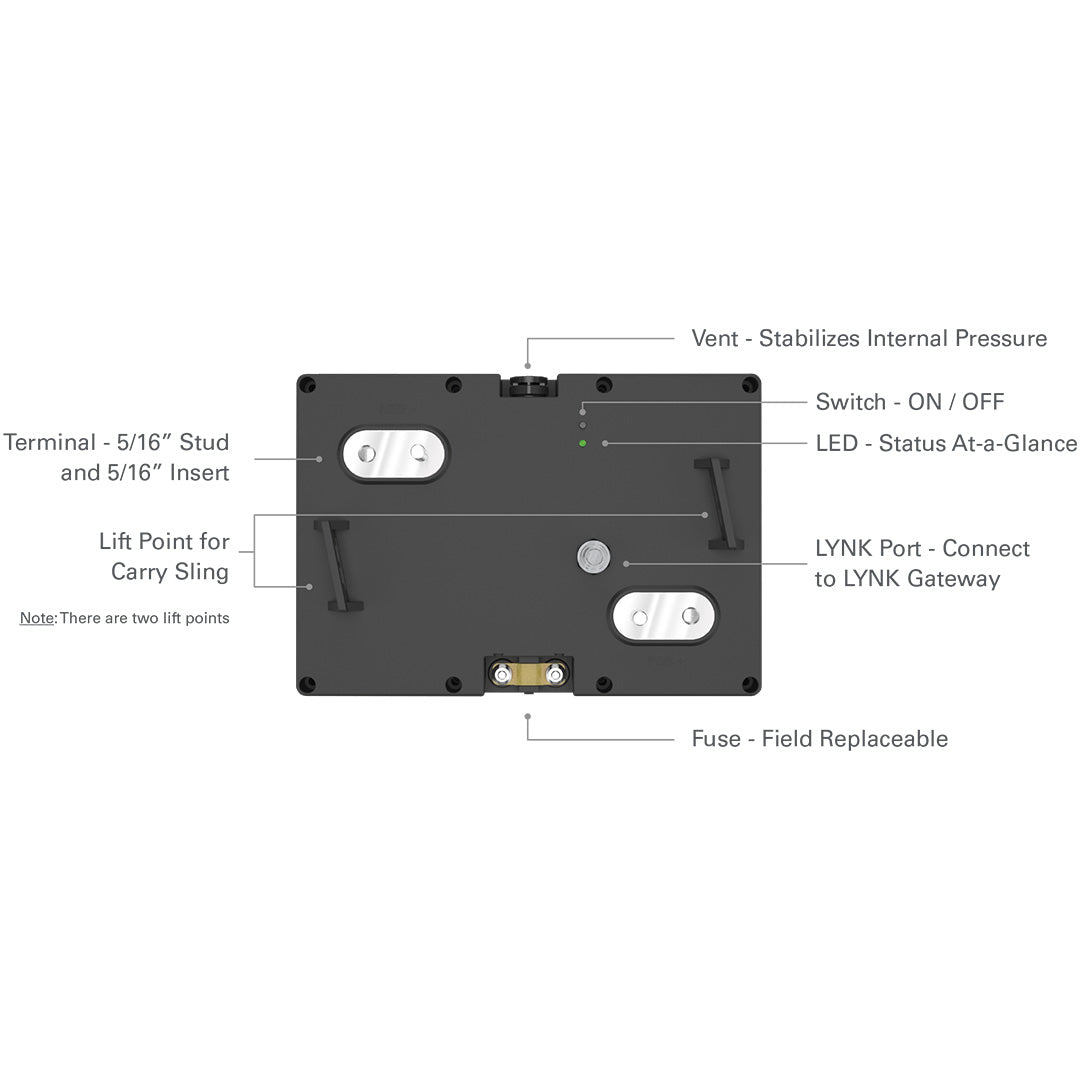

Lynx Port:
- Connects battery string to LYNK Gateway
- Plug and Play Multi-battery BMS communication
- J1939 Protocol
- Remote ON / OFF Capable
High-Performance BMS:
- Up to 3C peak power for inverters and motor controllers
- Discharge current up to 2C
- Continuous charge current up to 1C
- Sets voltage, broadcasts, SoC and temperature

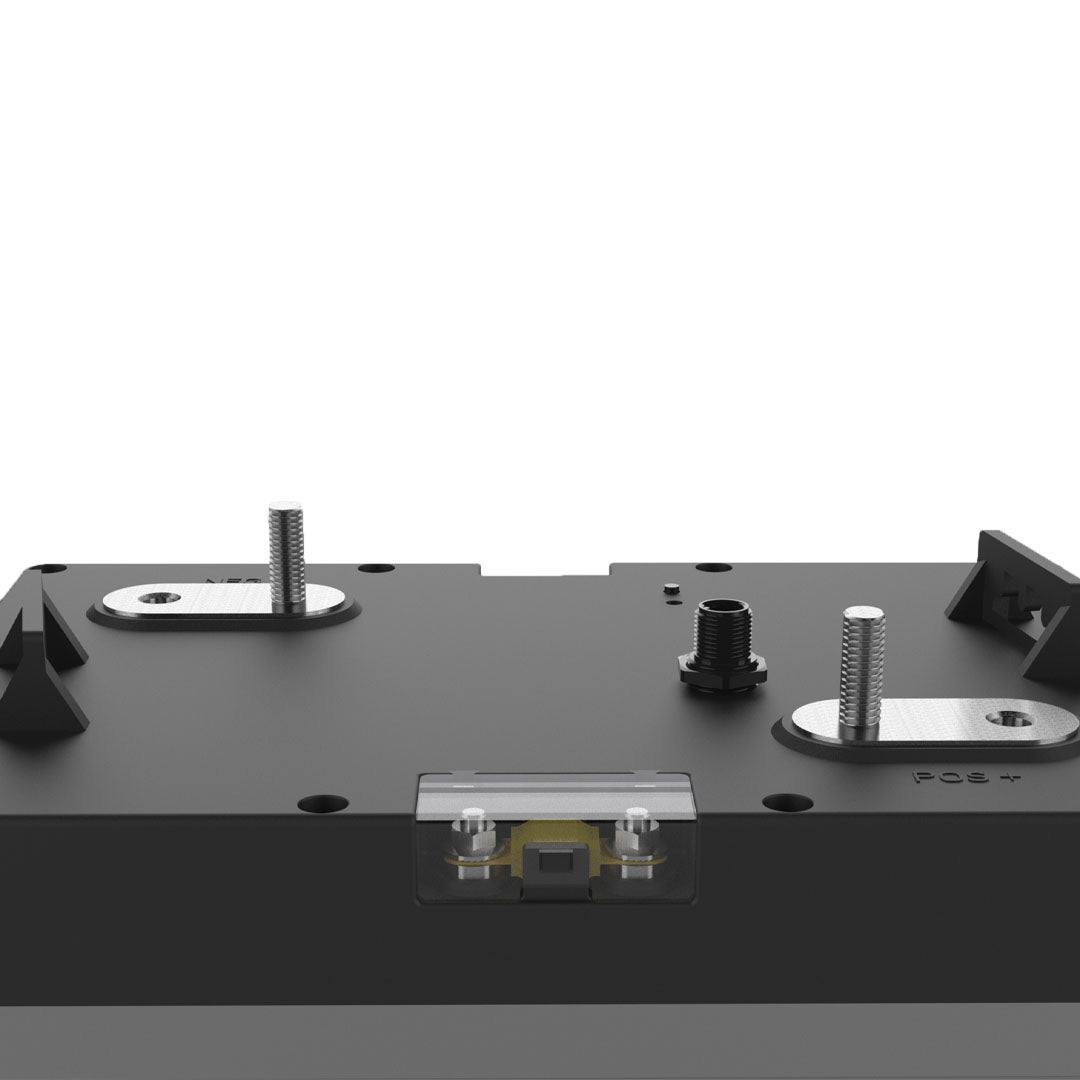

- External field replaceable fuse protection
Cold Charging:
- Integrated self-heating
Status View:
- ON / OFF multi-color status LED
Lynk II Gateway:
- Closed-loop communications with chargers and motor controllers
- CAN Open / Serial CAN
- Programmable relays for LVCO, Load Shedding
- SD Memory
- Download Battery Data
Runs Longer:
- 2x the high-current runtime of lead-acid battery
- Up to 100% usable capacity
- Easy to parallel more capacity
Lasts Longer:
- 10x the life of lead-acid battery (BCI-06)
- Unlimited Partial State of Charge cycles
- Energy throughput warranty
Charges Faster:
- Up to 5x faster than new lead-acid batteries
- 2x faster than C/2 rated lithium batteries
- Opportunity charge at 1C rate anytime, regardless of SoC
Surge Power:
- High 3C Peak Power
- Discharge Current up to 2C
High-Efficiency:
- Up to 50% more energy efficient than a lead-acid battery
- Up to 98% round-trip efficiency
Parallel Power:
- Easy to parallel more capacity
- Linear scaling of charge, discharge and peak capacity
Reliable & Safe:
- LiFePO4 is safe
- Maintenance-free
- UL94-5VA flame retardant case and cover
- IP 67 rated
Certified Quality & Standards:
- Discover® manufacturing facilities are fully certified to ISO 9001/14001 and OSHA 18001 standards.
- IEC 62619
- UL 2271
- CE
- UN 38.3
- UN 3480, Class 9 (Lithium batteries)
Additional Accessories:
IP65 network cables, rated for wet and humid environments, are available for IP67-rated AES PROFESSIONAL batteries.
- Discover Take off Lead Cable 1.8m for DLP Batteries - 950-0036
- Discover T Connector Cable 0.4m for DLP Batteries - 950-0038
Workmanship warranty & performance guarantee:
- Discover Lithium PROFESSIONAL batteries are backed with a 4 year base workmanship warranty and a 7 year extended workmanship warranty with registration. 7 Year warranty requires registration within 30 days of installation: Click here to register
