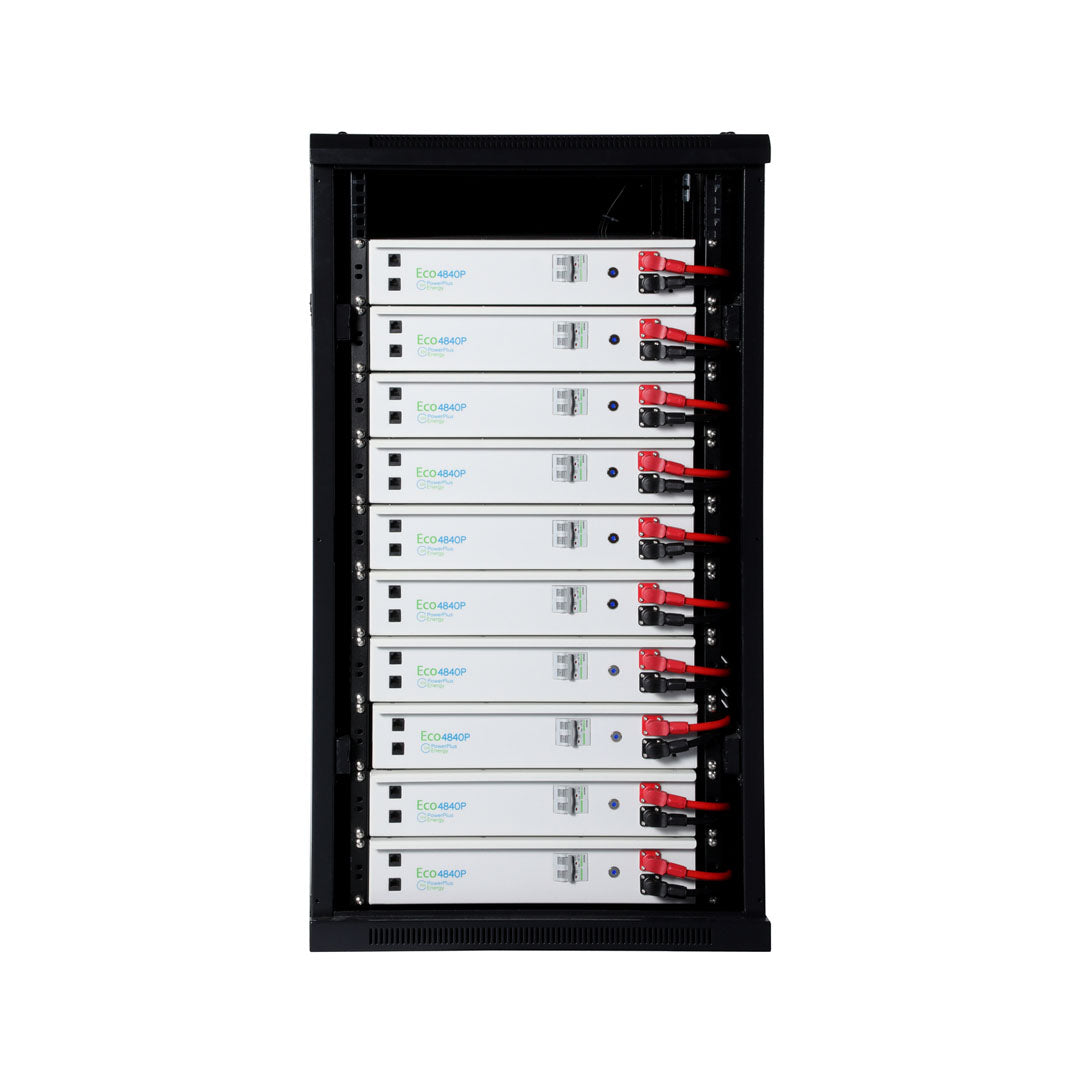

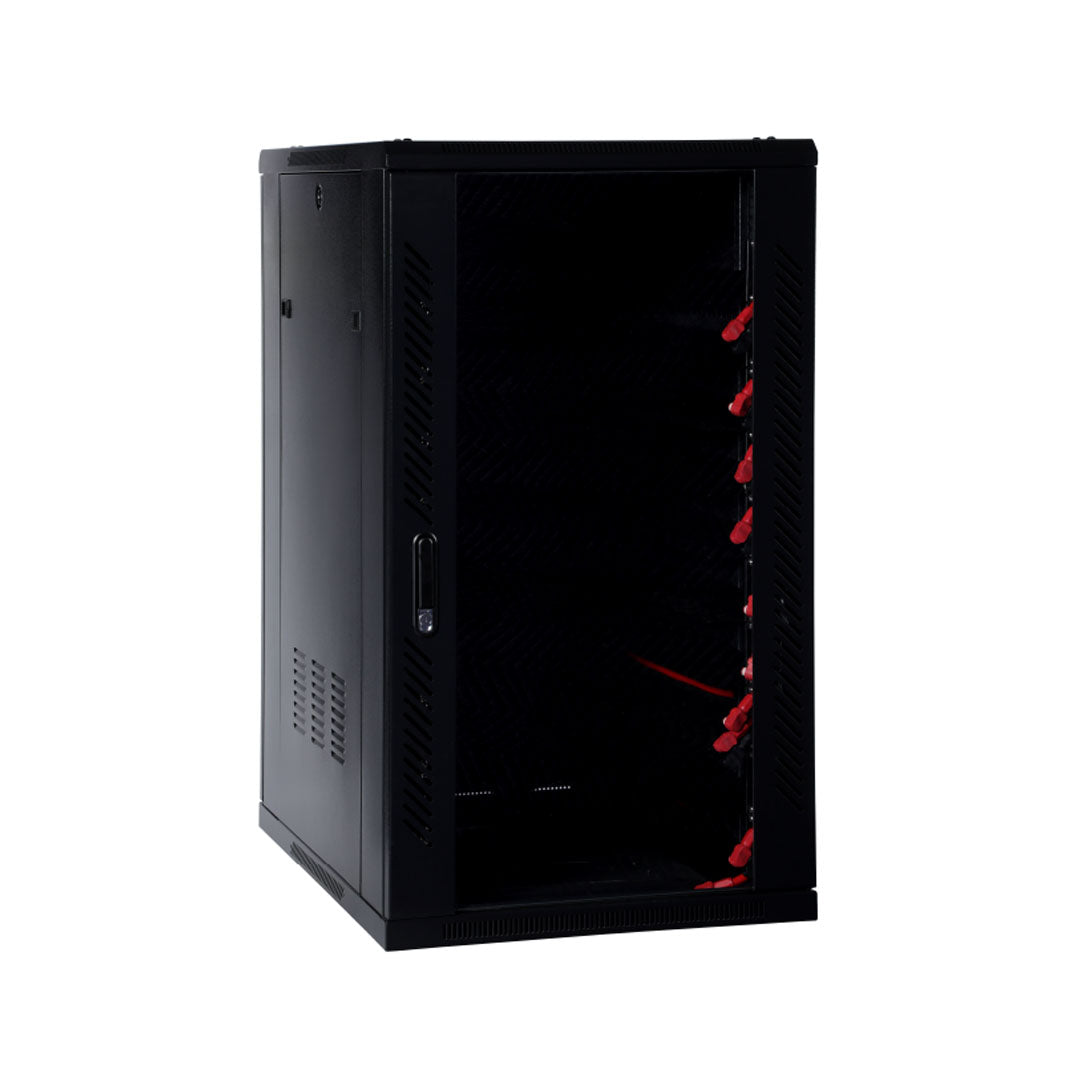

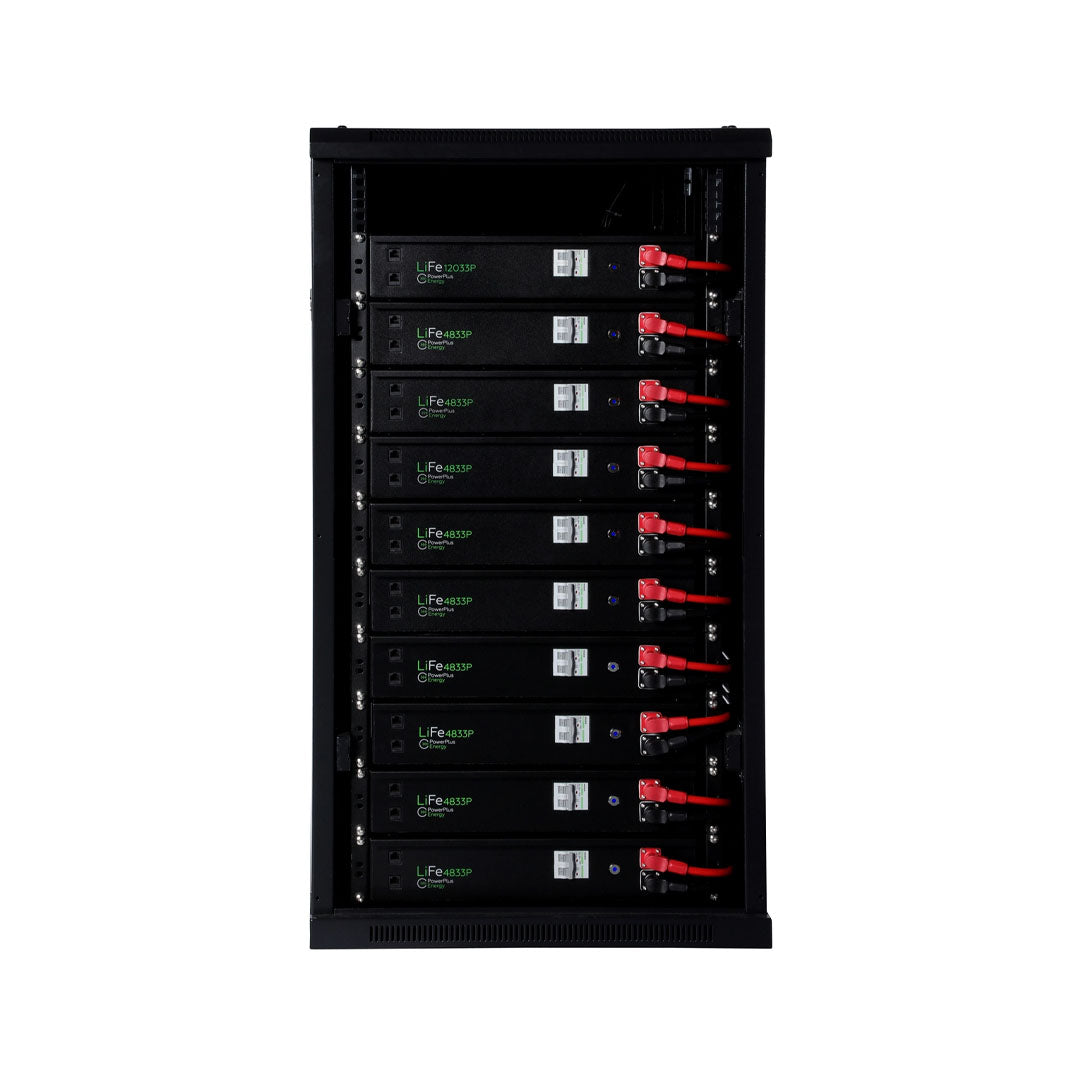

PowerPlus Energy Rack Series PIR8C-PIR20C:
The Rack Series cabinets are an elegant IP21 indoor battery cabinet that are pre-wired for an easy plug and play installation of our LiFe or ECO P Series batteries. Complete with all interconnecting battery cables and a 1000A DC busbar, installation has never been so simple.
Data sheet here
Note: PowerPlus Batteries sold separately.
Note: PowerPlus Cabinets can have a manufacturing lead time of up to 6 weeks. Please contact us prior to order for an estimated ETA. Alternatively this will be provided upon ordering.
Suits Battery Expansion- As needs or budget allow, it is easy to add another battery to the system. Plugging a new battery in and altering a few settings on your inverter is all that is needed.
Range of Cabinet Sizes- The Rack Series range in capacity from 8 all the way up to 20 batteries, and with the ability to parallel multiple cabinets, there really is a solution for all applications.
Prewired- To allow minimal fuss all our cabinets come prewired ready to go, the easiest part of the job will be installing the batteries.
Australian Designed and Made- Having a custom Australian Made product designed for the job makes the design and installation of your system easy.
Suitable for indoors- Our Rack series enclosures are IP21, making them suitable for indoor environments. With a compact footprint they enable you to make the most of the space available.
- Australian Made
- Suitable for both LiFe Premium and Eco Series Batteries
- Durable, Robust, Powder Coated Finish
- Future Proof Friendly
- Multiple Cabinets can be Linked in Parallel
- Indoor Friendly
- Store up to 40kWh of energy
- 10 battery slots
- IP21 Rating
- Floor Mounted

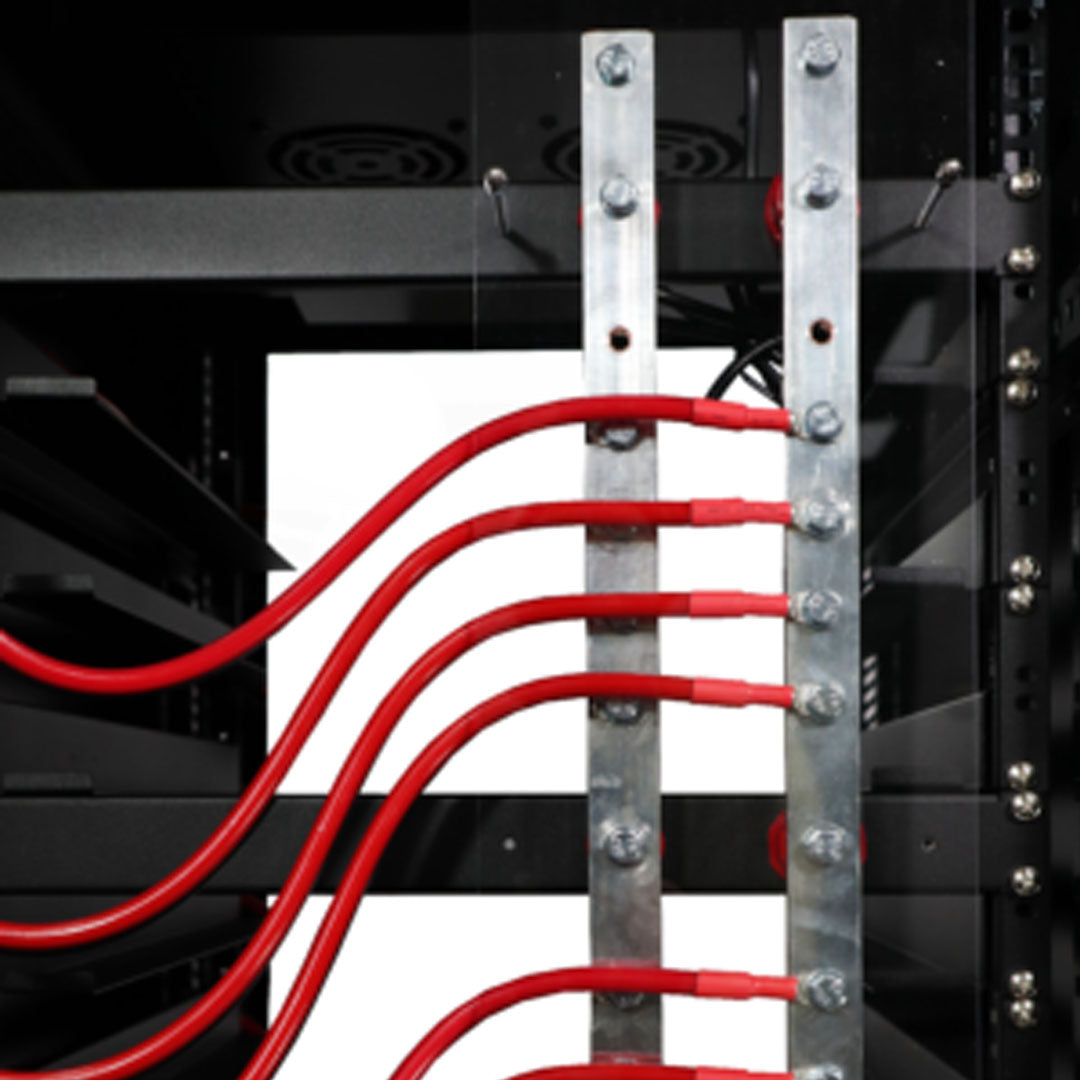

- Busbar with M8 Stud 1000A Continuous Rated
- 4 Caster Rollers and 4 Height Adjustable Locking Feet
