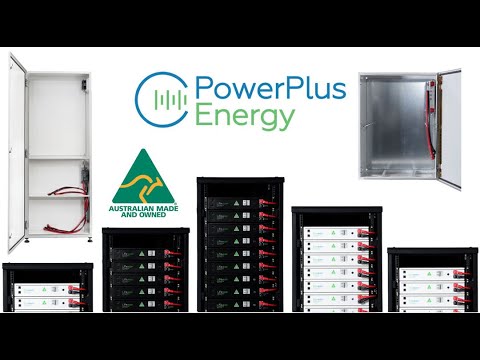

PowerPlus Energy SlimLine Cabinet Series:
The SlimLine Series cabinets are designed for outdoor or indoor projects and range in IP ratings from IP54 to IP66. The Slimline Range has a compact footprint which makes them ideal for smaller spaces. Designed and manufactured in Australia, the range brings a fresh modern look to energy storage. The easy-to-use plug and play design, with integrated DC cables, DC Busbar and DC circuit breaker (refer specification for full details), allows easy installation of our LiFe or ECO P Series.

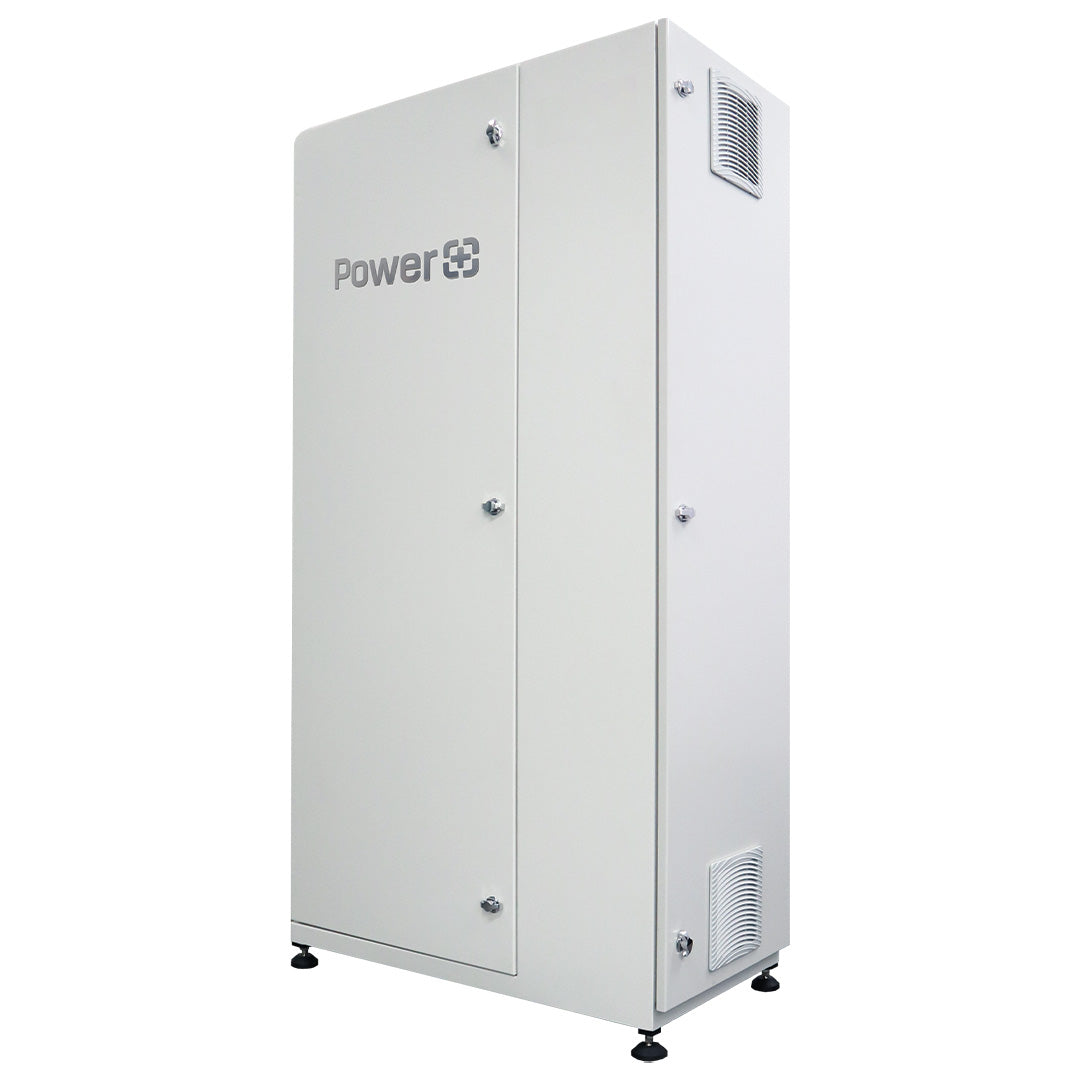

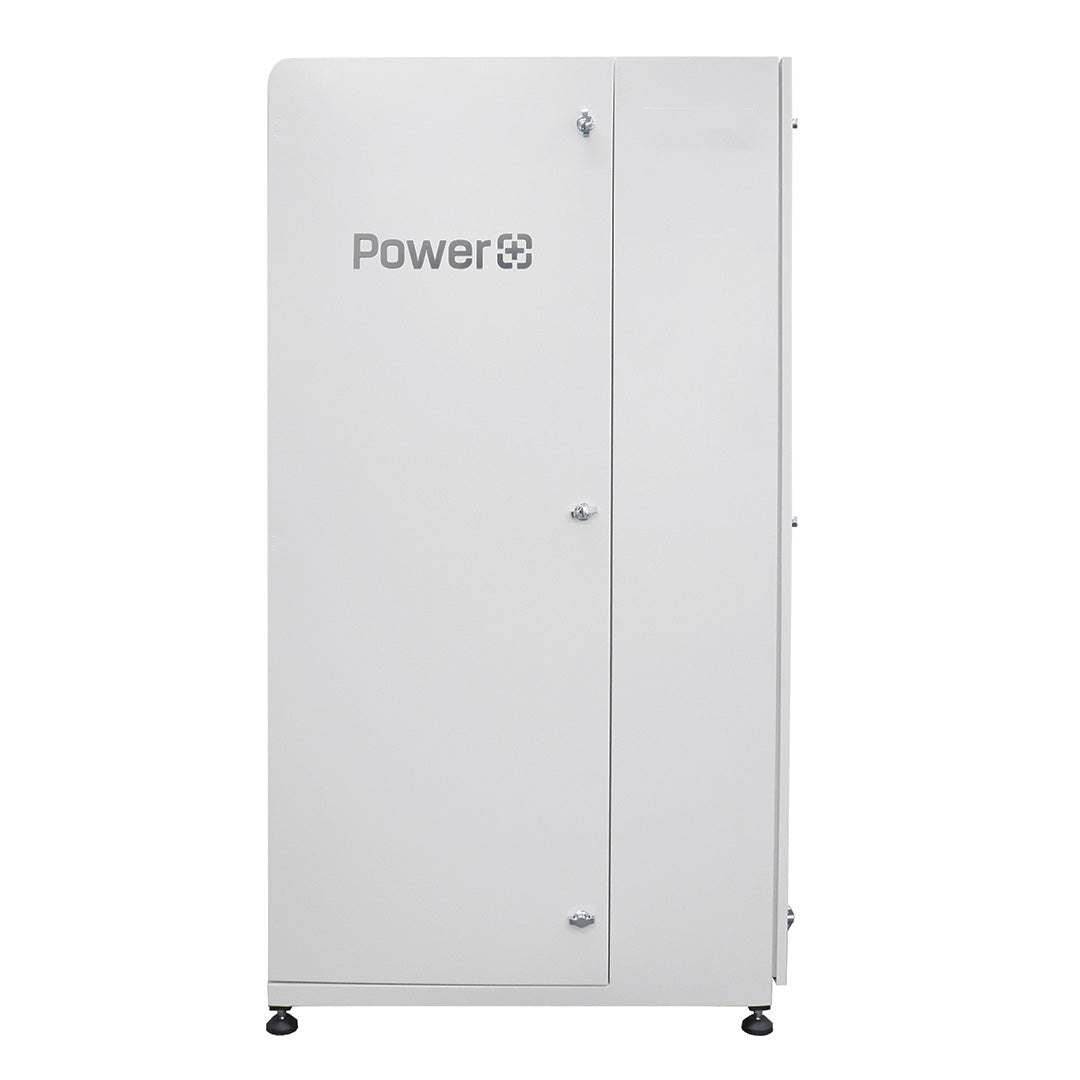

All in one enclosure for inverter and batteries. The PEF6 & PEF12 provides a compact solution for your complete solar powered battery system with minimal impact on walkways along the side of your home. The flexible design is suitable for a range of popular inverters to be installed in the same weatherproof enclosures with PowerPlus Energy batteries.
Data sheet here
Note: PowerPlus Cabinets can have a manufacturing lead time of up to 6 weeks. Please contact us prior to order for an estimated ETA. Alternatively this will be provided upon ordering.
Australian Designed and Made- Having a custom Australian Made product designed for the job makes the design and installation of your system easy.
Suitable for Outdoors- Our Slimline enclosures range from IP54 - IP66, ensuring that your outdoor installation will stay safe and out of the elements. They have a shallow profile making it easy to position them without encroaching on space.
Suits Battery Expansion- As needs or budget allow, it is easy to add another battery to the system. Plugging a new battery in and altering a few settings on your inverter is all that is needed.
Range of Cabinet Sizes- Capacity from 3 to 12 batteries, and with the ability to parallel multiple cabinets, there really is a solution for all applications.

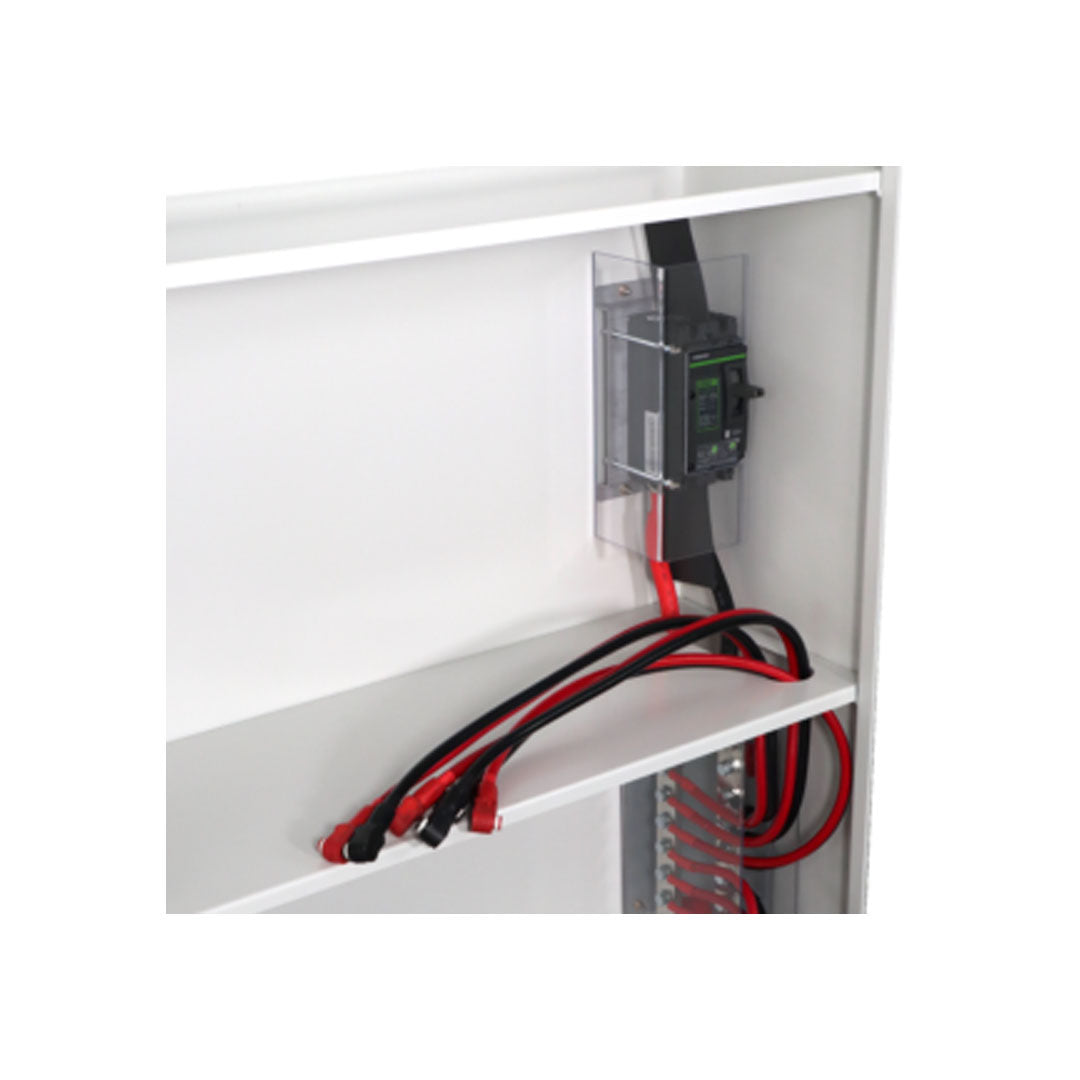

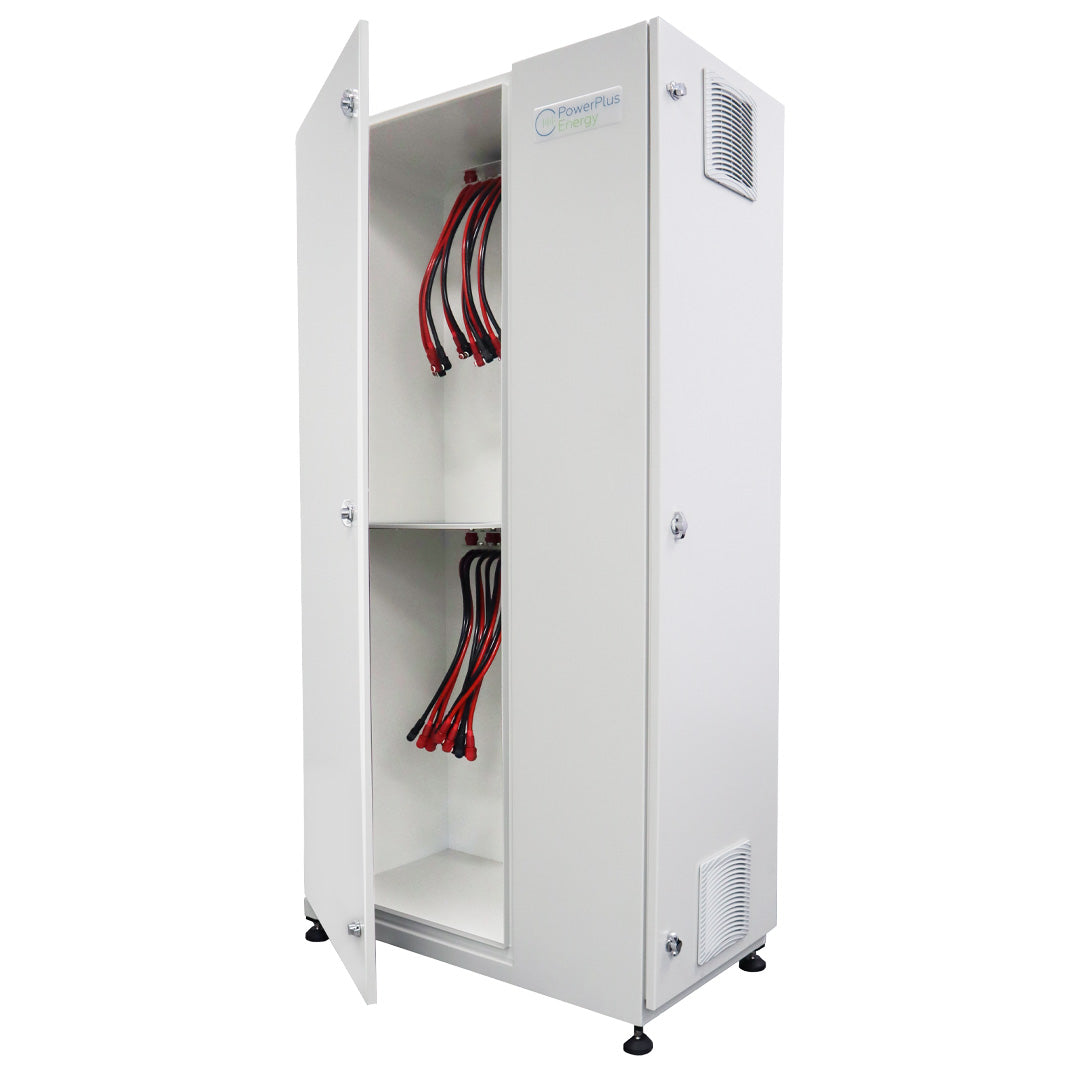

Prewired- To allow minimal fuss all our cabinets come prewired ready to go, the easiest part of the job will be installing the batteries.
- Australian Made
- Suitable for both LiFe Premium and Eco Series Batteries
- Durable, Robust, Powder Coated Finish
- Future Proof Friendly
- Multiple Cabinets can be Linked in Parallel
- Indoor and Outdoor Friendly
- Store up to 48kWh of energy
- 12 Battery slots
- IP54 Rating
- Floor Mounted
- Busbar with M8 Stud
- Temperature Controlled (adjustable) Fan Forced
- Dedicated space for Inverter
