 SkyBox 8kVA-10kVA:

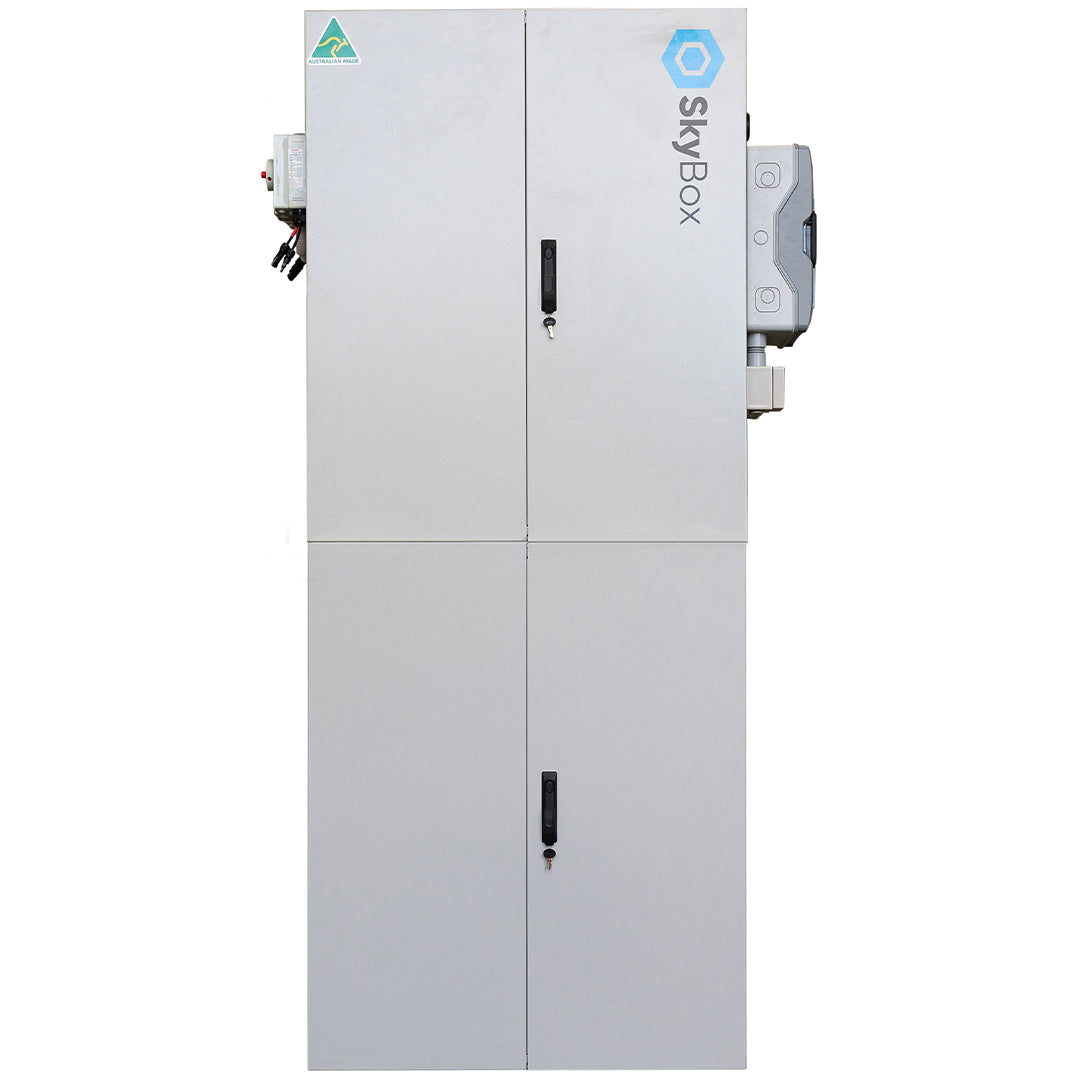

SkyBox is a self contained energy system with an optional battery, Victron inverter and switches all housed in a custom weatherproof enclosure. SkyBox gives everyone freedom and independence from the power grid. Acting as a central ‘brain,’ the SkyBox manages incoming power from your solar, wind, or hydro generators. Balancing these power sources and storing excess energy in the internal batteries, SkyBox creates a reliable off-grid electricity supply. Since any electrician can install it, you can save thousands compared to installing an off grid solar system, through an off grid installer or provider.

The SkyBox is designed for both indoor and outdoor use and provides enormous battery capacity in one cabinet. Because of this, you can enjoy all the luxury of being on the grid while being off the grid! When you want to expand, simply add more batteries to suit your storage requirements. SkyBox protects your home with full off-grid power! Reduce the cost of going off-grid and generate your own energy today.


The SkyBox is available in 6 different models:

- SkyBox Mini 3kVA (3kVA Inverter output with up to 4kW Solar & 19.2kWh Battery Storage sold separately)

- SkyBox Mini 5kVA (5kVA Inverter output with up to 5.8kW Solar & 19.2kWh Battery Storage sold separately)

- SkyBox 8kVA_450/100 (8kVA Inverter output with up to 5.8kW Solar & 38.4kWh Battery Storage sold separately)

- SkyBox 8kVA_450/200 (8kVA Inverter output with up to 11.5kW Solar & 38.4kWh Battery Storage sold separately)

- SkyBox 10kVA_450/100 (10kVA Inverter output with up to 5.8kW Solar & 38.4kWh Battery Storage sold separately)

- SkyBox 10kVA_450/200 (10kVA Inverter output with up to 11.5kW Solar & 38.4kWh Battery Storage sold separately)

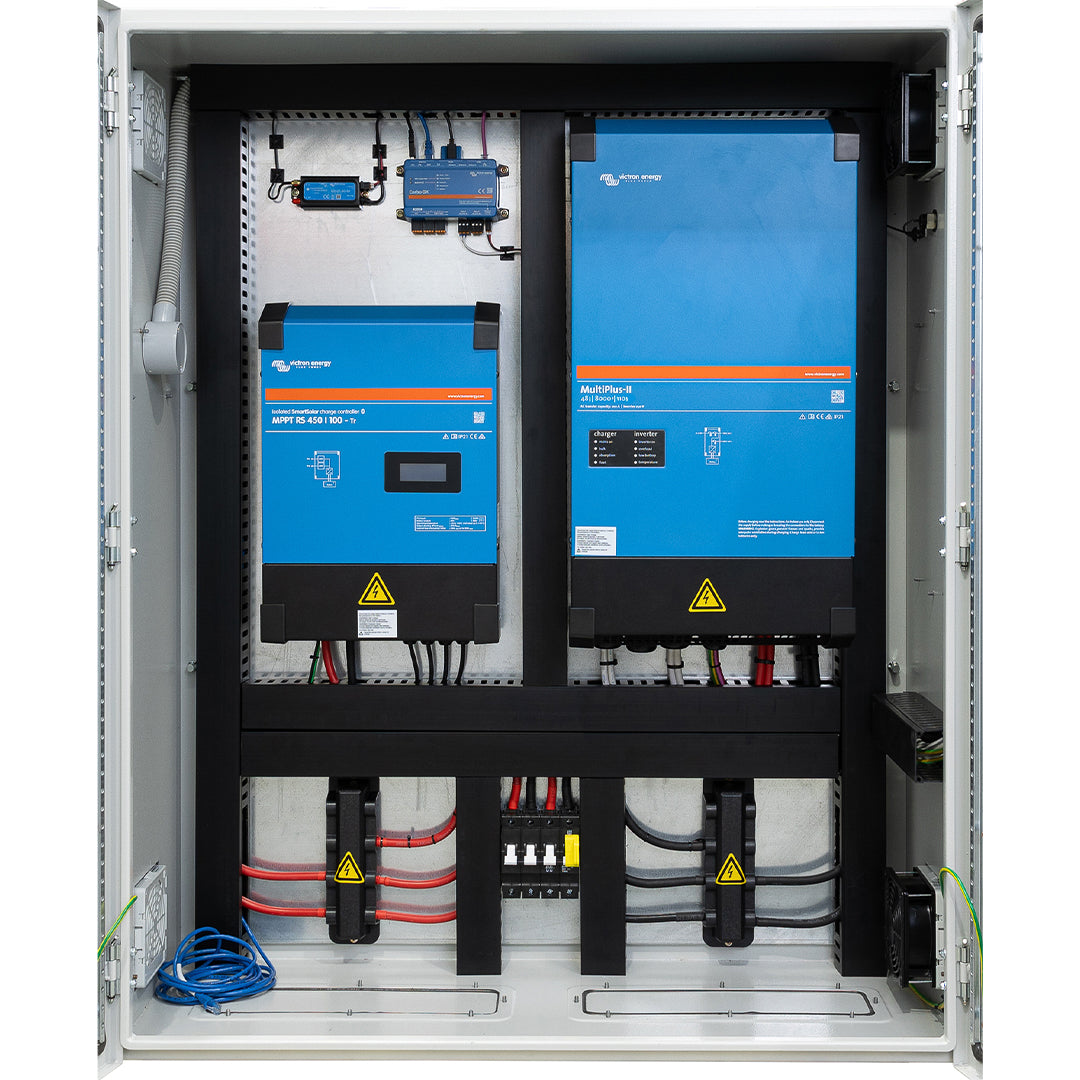

The SkyBox 8kVA_450/200 includes an in-built Victron MultiPlus-II 48/8000, Victron 450/200 MPPT Solar charger, Victron Cerbo GX, Victron GSM 4G LTE module, AERL EarthGuard, Pre-Wired AC External Switchboard, Pre-Wired external Solar input, Pre-Wired connections for Pylontech US5000-B batteries, Internal Busbars & Circuit Protection.


Brochure here

Data sheet here

Manual here

Warranty guide here


Note: This unit requires installation by a licensed Electrician & houses 3-8 Pylontech US5000-B rack mount lithium batteries (sold separately).

Note2: SkyBox cabinets are made to order and the lead time can vary from 3-4 weeks approx.


Since developing the SkyBox, our focus has always been to make the installer's life as easy as possible to install the SkyBox. With this in mind, we continue to make updates to the SkyBox, which we have detailed below:

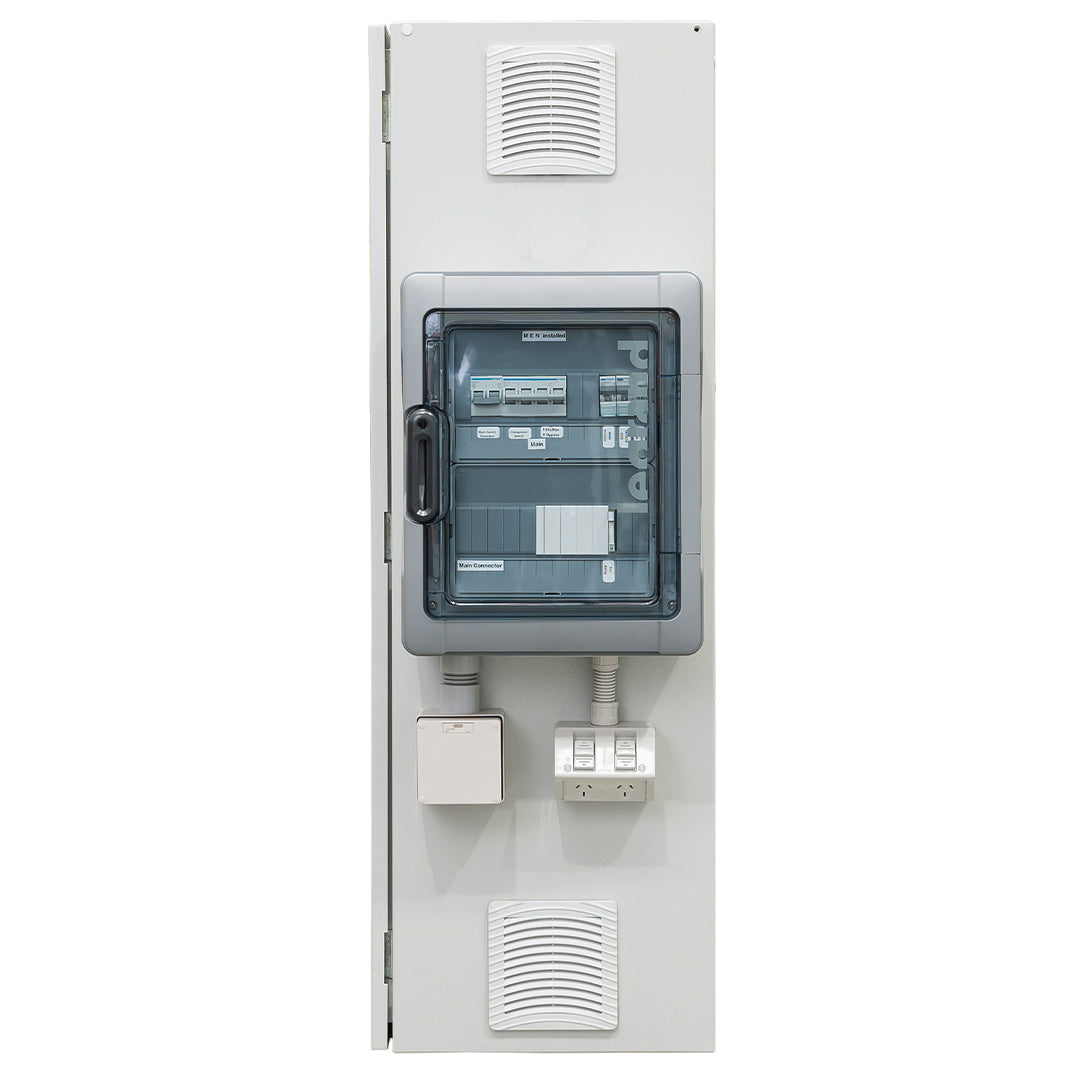

- Addition of an external switchboard. This makes it easier to wire AC connections, including AC out and AC in (generator input). There is no longer a need for cabinet penetrations.

- Manual changeover switch added. If the inverter fails, it can be bypassed to operate off the generator until a technician arrives to fix it.

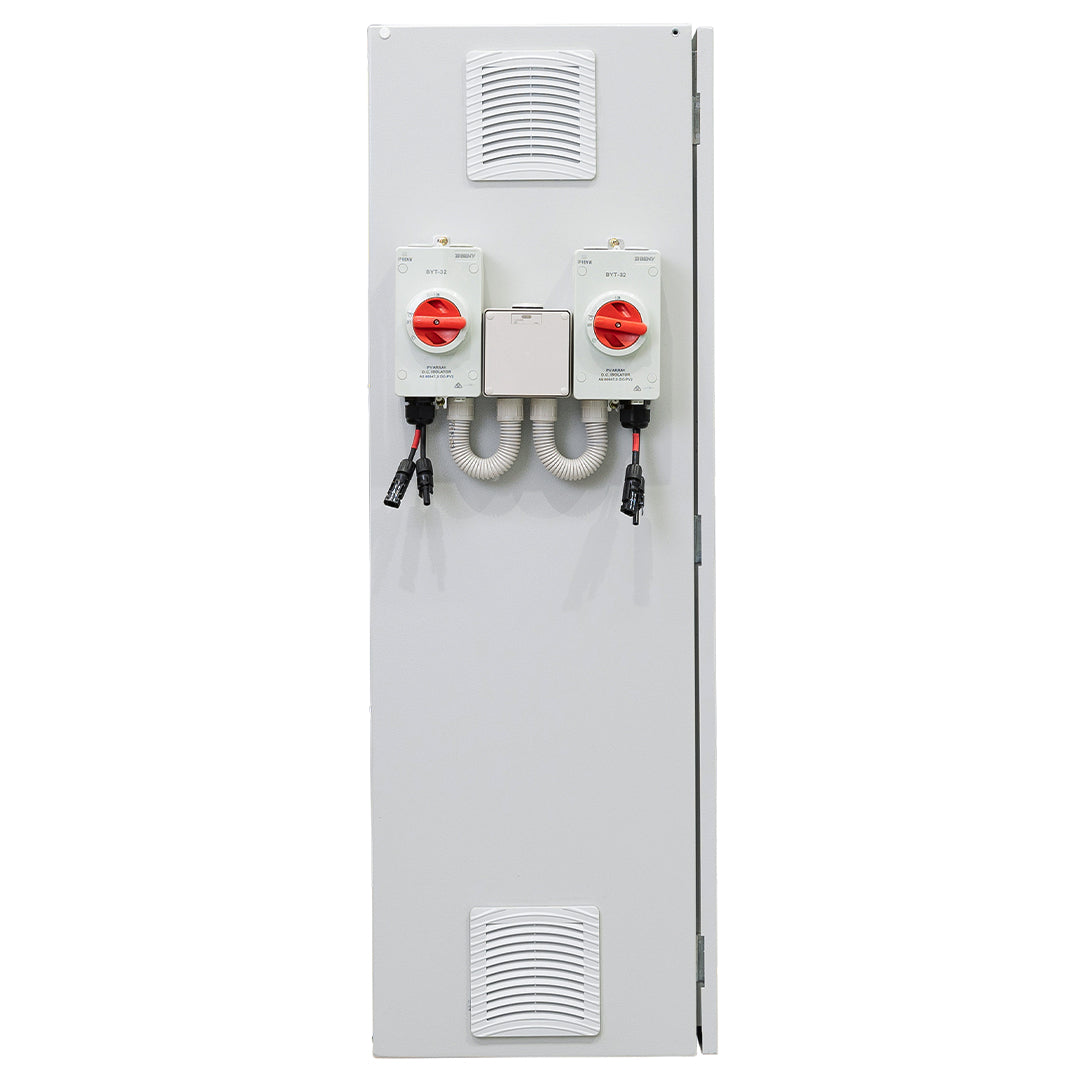

- DC isolators have been added to the side of the box. These were previously supplied separately in the electrical kit for the installer to assemble.

- Generator Auto start contacts added to the external switchboard. This allows for easier access and wiring.

- Earth Protection is standard to the 3kVA and 5kVA and via RS450/100’s in the 8kVA and the 10kVA,

- 4G LTE module and puck added as standard to the 8kVA and 10kVA and optional for the 3kVA and 5kVA. The addition of the modules gives Sky Energy the ability to log in and troubleshoot as required.

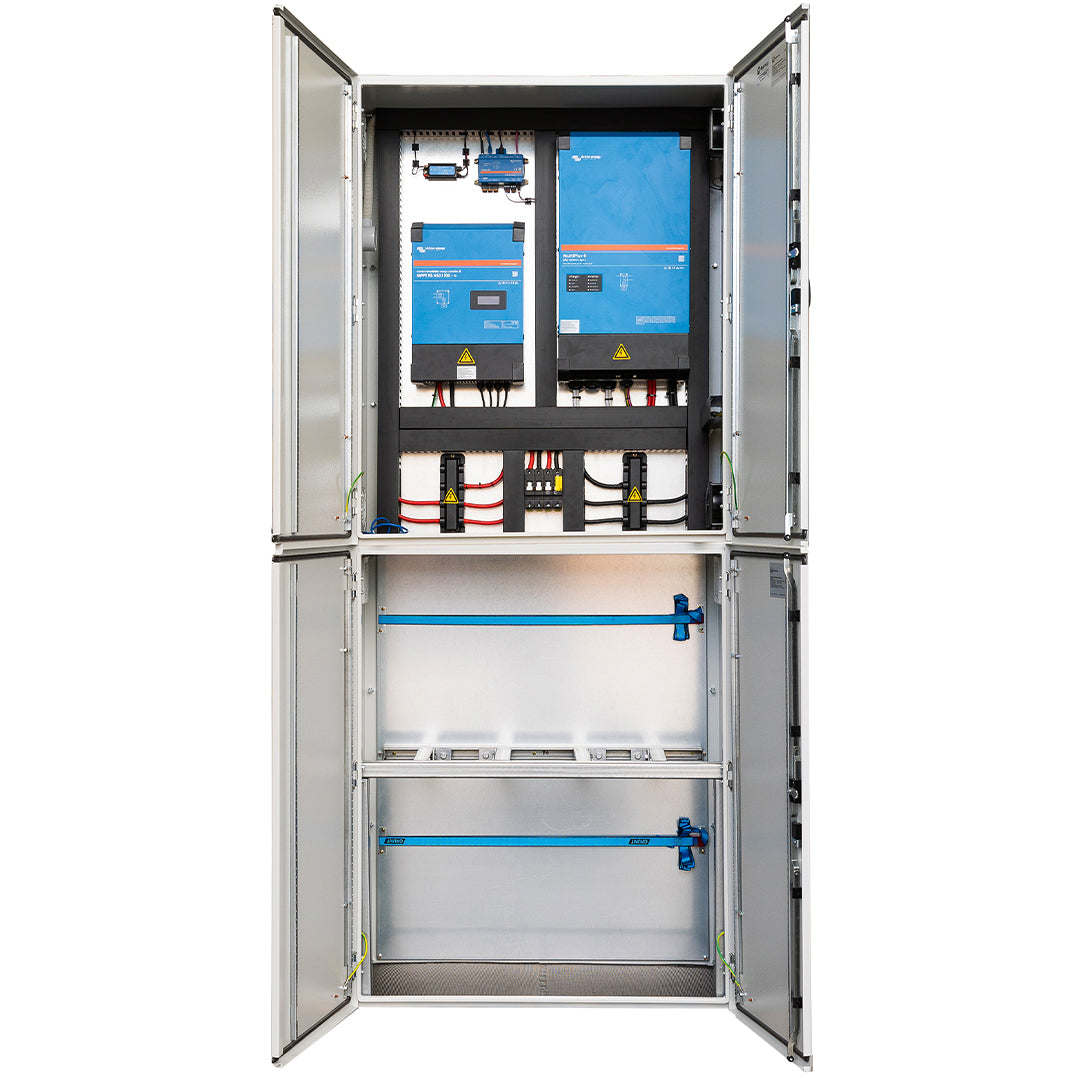

- An internal rejig of components has enabled the 3kVA + 5kVA to house 4x Pylontech US5000-B batteries offering up to 19.2kWh of battery storage. The 8kVA + 10kVA cabinets can now house 8x Pylontech US5000-B batteries offering up to 38.4kWh of battery storage.

- Fans have been upgraded on all models for better cooling of the components.

- All SkyBox cabinets have a Factory Acceptance Test (FAT) before being shipped to site.




Solar Compatible- The SkyBox can be used in off-grid as well as other alternative energy systems. It is compatible with both solar charger controllers and new or existing grid-tie inverters.


No Break Supply- The SkyBox takes over the supply to the connected loads in a grid failure or when generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.


Maximum Power- Up to 6 SkyBoxes can operate in parallel to achieve higher power output. Six units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three-phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity!


SkyCare Monitoring- Our free remote monitoring app will display all your system data in a comprehensive graphical format. System settings can be changed remotely via the portal. Alarms can be received by e-mail.


Off-Site Monitoring- When connected to the internet, SkyBox can be accessed remotely, and settings can be changed.


Proudly Aussie made- Every SkyBox is put together and tested by our engineers in our headquarters in Victoria before being shipped out.


Independence from the grid- The SkyBox replaces grid connection supply and provides total independence from the grid.


10-year replacement warranty- The SkyBox comes with a massive 10-year warranty.


Plug and play install for electricians- The great thing about the SkyBox is that your local sparky can install it, and they don’t require an off-grid licence to do so.


No assembly required- The SkyBox comes prewired and pre-programmed for easy installation.
