SkyBox Mini 3kVA-5kVA:

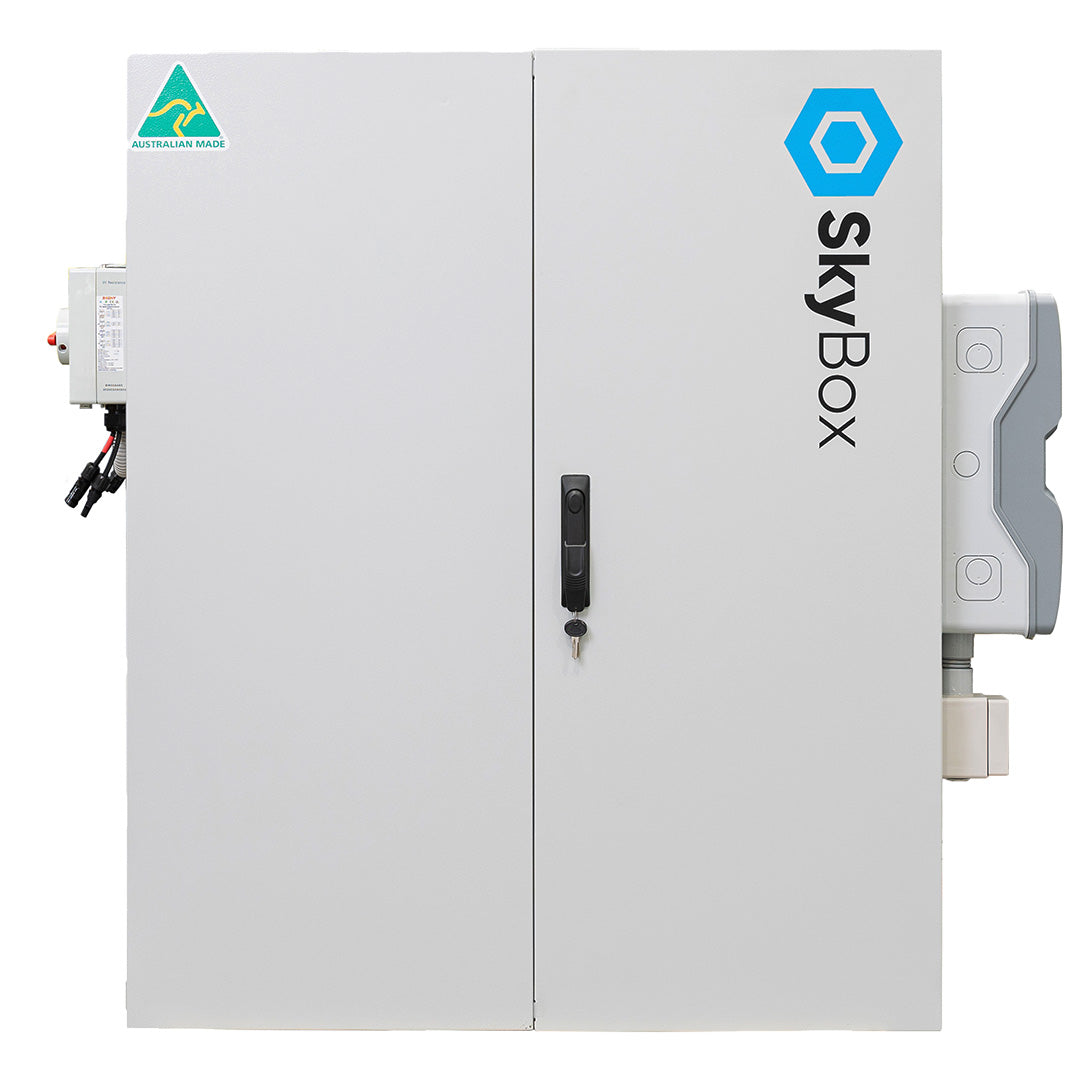

SkyBox Mini is a self contained energy system with an optional battery, Victron inverter and switches all housed in a custom weatherproof enclosure. SkyBox gives everyone freedom and independence from the power grid. Acting as a central ‘brain,’ the SkyBox manages incoming power from your solar, wind, or hydro generators. Balancing these power sources and storing excess energy in the internal batteries, SkyBox creates a reliable off-grid electricity supply. Since any electrician can install it, you can save thousands compared to installing an off grid solar system, through an off grid installer or provider.
The SkyBox is designed for both indoor and outdoor use and provides enormous battery capacity in one cabinet. Because of this, you can enjoy all the luxury of being on the grid while being off the grid! When you want to expand, simply add more batteries to suit your storage requirements. SkyBox protects your home with full off-grid power! Reduce the cost of going off-grid and generate your own energy today.

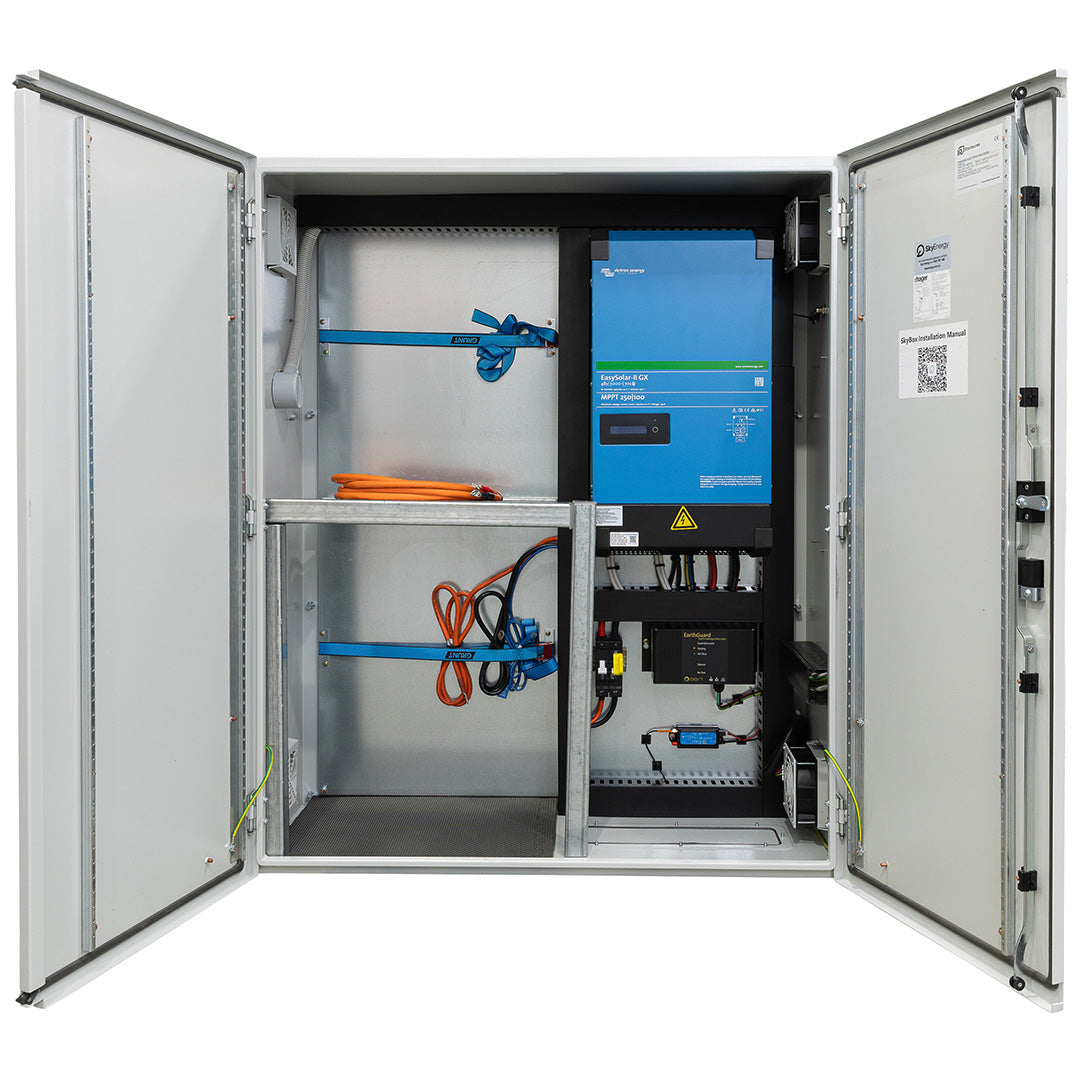

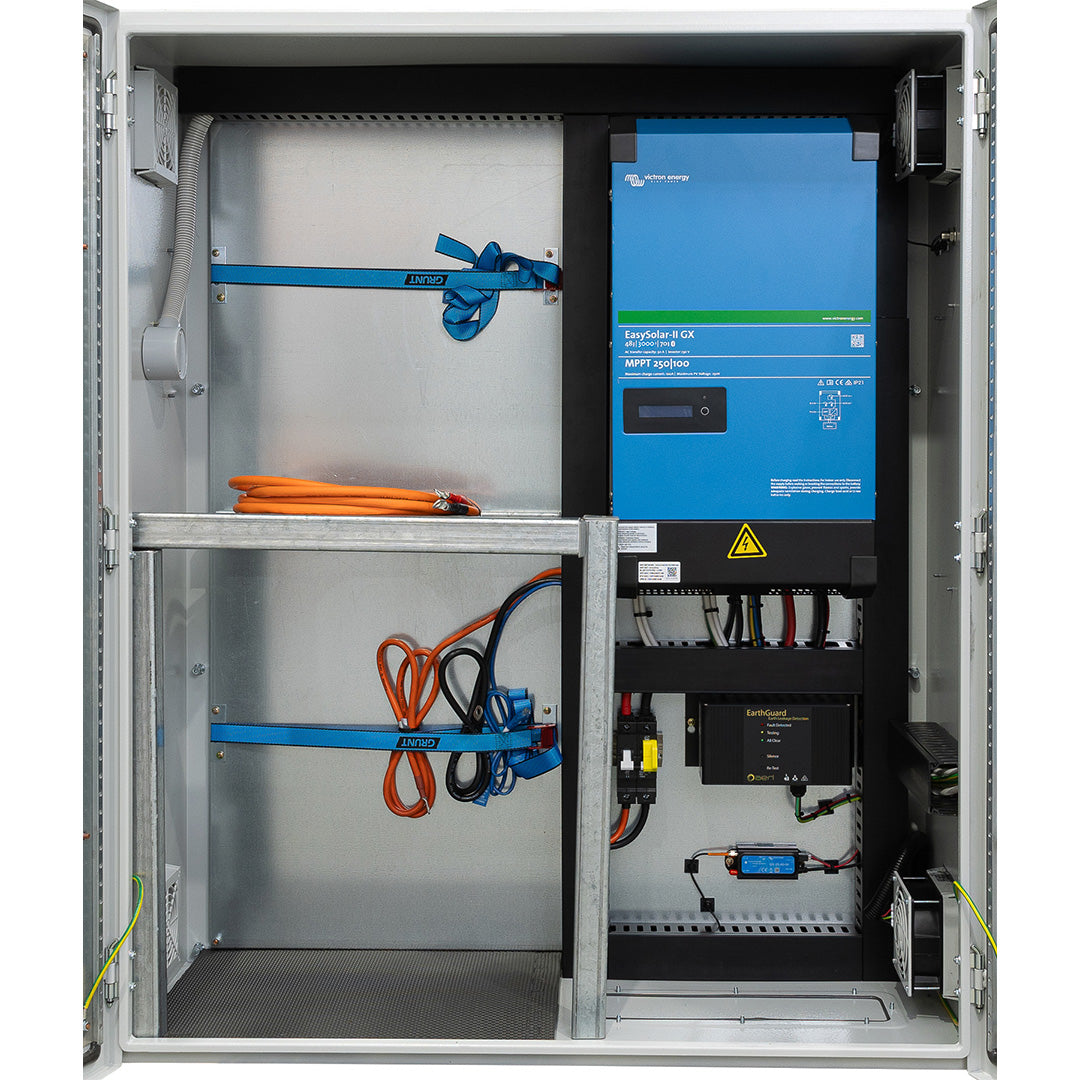

The SkyBox Mini 3kVA features an in-built Victron EasySolar-II 48/3000 GX with a 250/70 Victron MPPT Solar charger.
Models: 3000VA, 5000VA
Data sheet here
Note: This unit requires installation by a licensed Electrician & houses 2-4 Pylontech US3000-C or US5000-B rack mount lithium batteries (sold separately).
Note2: SkyBox cabinets are made to order and the lead time can vary from 3-6 weeks. Please contact us prior to ordering or the lead time will be supplied upon ordering.
Solar Compatible- The SkyBox can be used in off-grid as well as other alternative energy systems. It is compatible with both solar charger controllers and new or existing grid-tie inverters.
No Break Supply- The SkyBox takes over the supply to the connected loads in a grid failure or when generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Maximum Power- Up to 6 SkyBoxes can operate in parallel to achieve higher power output. Six units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity. In addition to parallel connection, three units of the same model can be configured for three-phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity!
SkyCare Monitoring- Our free remote monitoring app will display all your system data in a comprehensive graphical format. System settings can be changed remotely via the portal. Alarms can be received by e-mail.
Off-Site Monitoring- When connected to the internet, SkyBox can be accessed remotely, and settings can be changed.
Proudly Aussie made- Every SkyBox is put together and tested by our engineers in our headquarters in Victoria before being shipped out.
Independence from the grid- The SkyBox replaces grid connection supply and provides total independence from the grid.
10-year replacement warranty- The SkyBox comes with a massive 10-year warranty.
Plug and play install for electricians- The great thing about the SkyBox is that your local sparky can install it, and they don’t require an off-grid licence to do so.
No assembly required- The SkyBox comes prewired and pre-programmed for easy installation.
