Introducing the Arizon “Micro Touch” 12V Victron Board: Your All-in-One Prewired Solution:

Building on the foundation of the Micro, the Micro Touch offers enhanced features with the inclusion of a SmartShunt, Cerbo GX, and GX Touch screen, replacing the BMV-712.This addition slightly increases the board’s width but offers a more interactive user experience.

While the “Micro” board offers a compact solution, the “Micro Touch” takes it a step further. It not only retains the essential features but enhances them with the integration of a SmartShunt, Cerbo GX, and a GX Touch screen, replacing the BMV-712. This innovative addition not only extends the board’s width slightly but transforms the user experience, making it more interactive and user-friendly.

Experience the future of power systems with the “Micro Touch” Arizon 12V Victron Board. Designed to cater to the evolving needs of caravan and motorhome enthusiasts, this board is more than just a power source; it’s an interactive experience.

Comparison Table here

Data Sheet here

Installation Guide here

Product Guide here

Warranty Guide here

Please note: Arizon boards are made to order with a lead time of 1-2 weeks and can be pre-programmed to suit your battery type and capacity. The Micro Touch board can be upgraded to a SmartSolar 100/50 MPPT and a GX Touch 70.

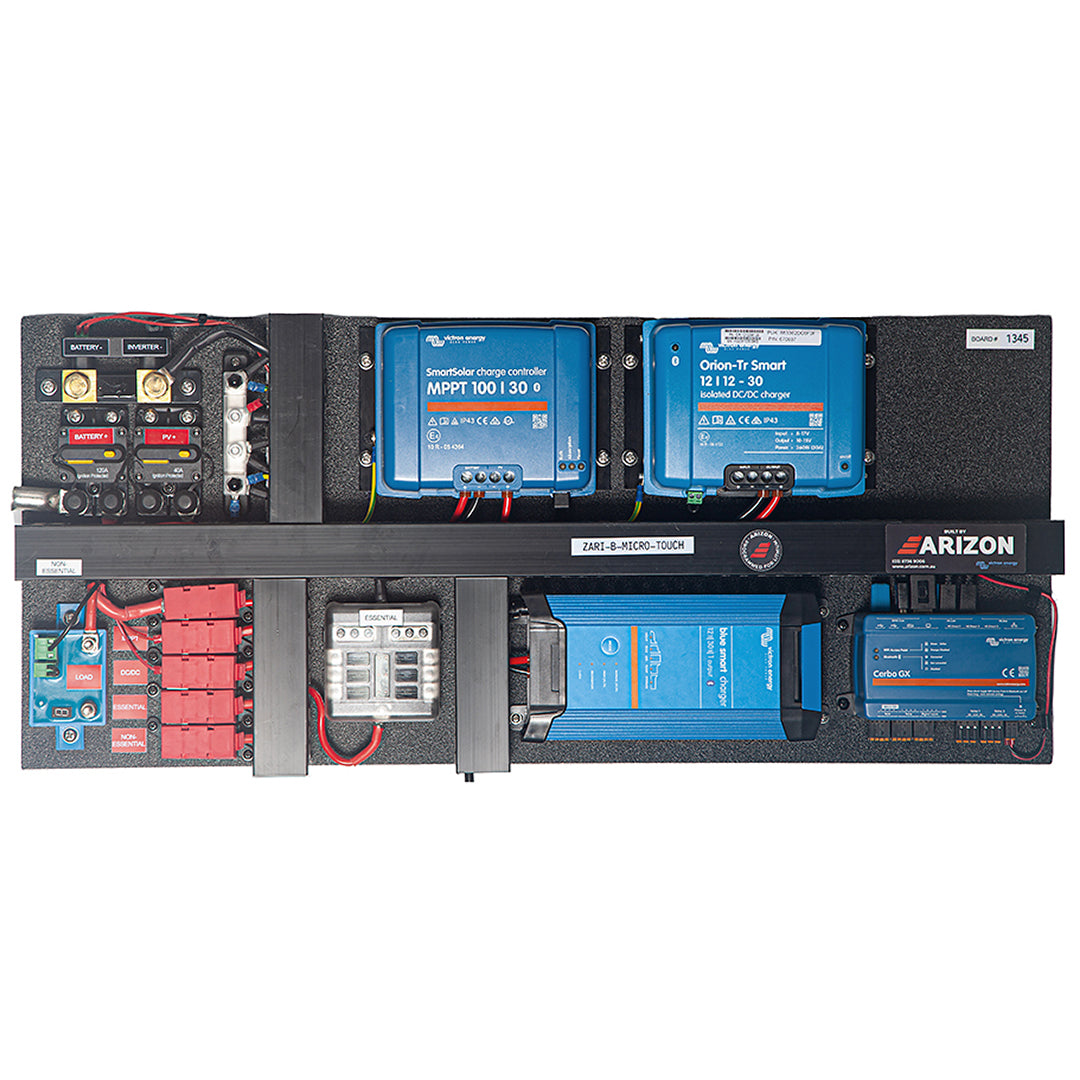

Key Features of the “Micro Touch” Board:

- Victron Smart Solar Charge Controller MPPT 100/30 (SCC110030210)

- Victron Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger (ORI121236120)

- Victron Blue Smart IP22 Charger 12/30 230V (BPC123047012)

- Victron Cerbo GX (BPP900450100)

- Victron GX Touch 50 (BPP900455050)

- Victron SmartShunt 500A (SHU050150050)

- Victron Battery Protect 65A (BPR065022000)

- Victron Remote Monitoring

- Tank Level Monitoring (Up to 4 Inputs)

- 6 x Protected 12V DC Outputs

- Automotive Resettable Circuit Breaker 40A (Solar)

- Automotive Resettable Circuit Breaker 120A (Board)

- 4 x Midi Fuse Holders

- 1 x Negative Bus Bar

- Dimensions: 755mm x 330mm

- Warranty 5 Years

- Weight: 9.3kg

- SKU: ZARI-B-MICRO-TOUCH

About the Arizon Victron Boards:

Our commitment to excellence is evident in every board we craft. Designed to provide a hassle-free way to power your vehicle with Arizon Victron Energy, each board is meticulously wired, programmed, and tested by our seasoned technical team. They arrive installation-ready, accompanied by a system schematic, a quick-start installation guide, and a QR code that leads to a comprehensive installation and setup guide.

At the heart of our boards lie Victron components, renowned for their superior quality, reliability, and performance. When you choose Victron, you’re investing in a legacy of excellence that promises longevity and optimal functionality. Furthermore, the modular nature of these components ensures that servicing is a breeze, allowing for easy replacements and upgrades without overhauling the entire system.
