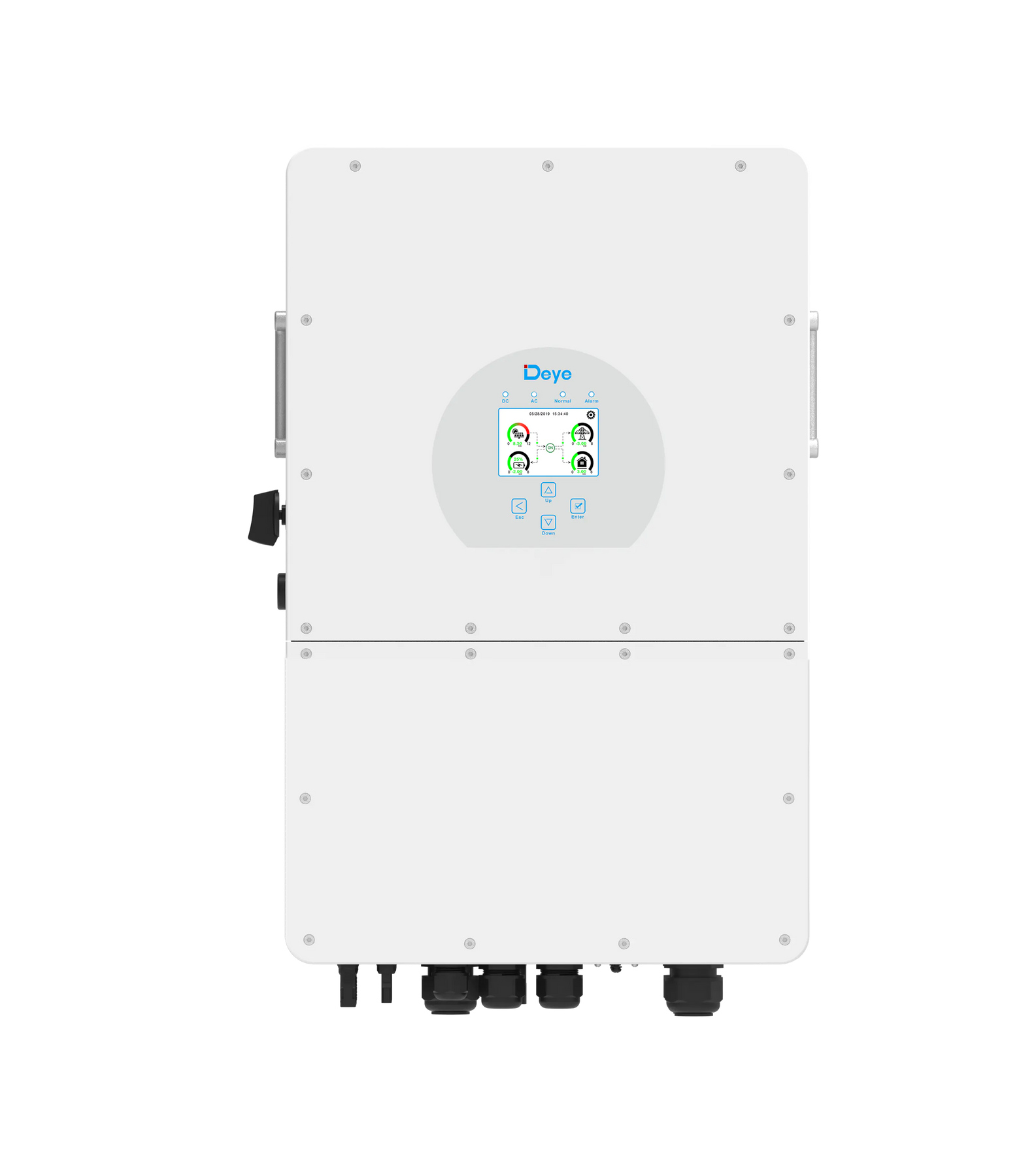

DEYE SUN-10K-SG01HP3-AU-AM2 | 10kW | High Voltage | Three Phase Hybrid Inverter | HV Battery Supported
The Deye SUN-10K-SG01HP3-AU-AM2 is a 10kW high voltage three-phase hybrid inverter designed for large residential and commercial solar systems. It combines solar energy generation, battery storage, and grid interaction to deliver high-efficiency performance, reliable operation, and long-term energy savings.
With dual MPPT channels, high voltage battery compatibility, and three-phase output, this inverter ensures optimal energy production, stable power distribution, and scalability for future system expansion. Ideal for commercial buildings, large homes, and solar farms, it provides consistent performance and long-term reliability.
Dimensions: 408×638×237mm
Weight: 30.5kg
Features:
- 10kW High Voltage Hybrid Inverter – Delivers high performance and efficiency for large solar systems
- Maximum PV Input Power: 15kW – Supports large solar arrays for optimal energy capture
- Battery Voltage Range: 48–60V – Compatible with high voltage batteries for fast storage and retrieval
- Maximum Efficiency: 98.6% – Ensures minimal energy loss and maximises energy savings
- Dual MPPT Channels – Optimises energy generation across multiple solar arrays
- Three-Phase Power Output – Provides stable, balanced energy distribution across three phases
- AC Coupling Ready – Integrates seamlessly with existing grid-tied systems for battery expansion
- Wi-Fi & Remote Monitoring – Real-time system monitoring and remote management via built-in Wi-Fi
- Weatherproof IP65 Rating – Designed for outdoor use, protecting against dust and moisture
- Compliant with Australian Standards – Certified to AS/NZS 4777.2
- 10-Year Warranty
Specifications:
- Inverter Output Power: 10,000W (Three-Phase)
- Maximum PV Input Power: 15,000W
- Battery Voltage Range: 48–60V
- Maximum Efficiency: 98.6%
- MPPT Efficiency: 99.9%
- AC Coupling: Yes
- Wi-Fi Monitoring: Yes
- Weatherproof Rating: IP65
Note: Must be installed by a licensed electrician.
