Description

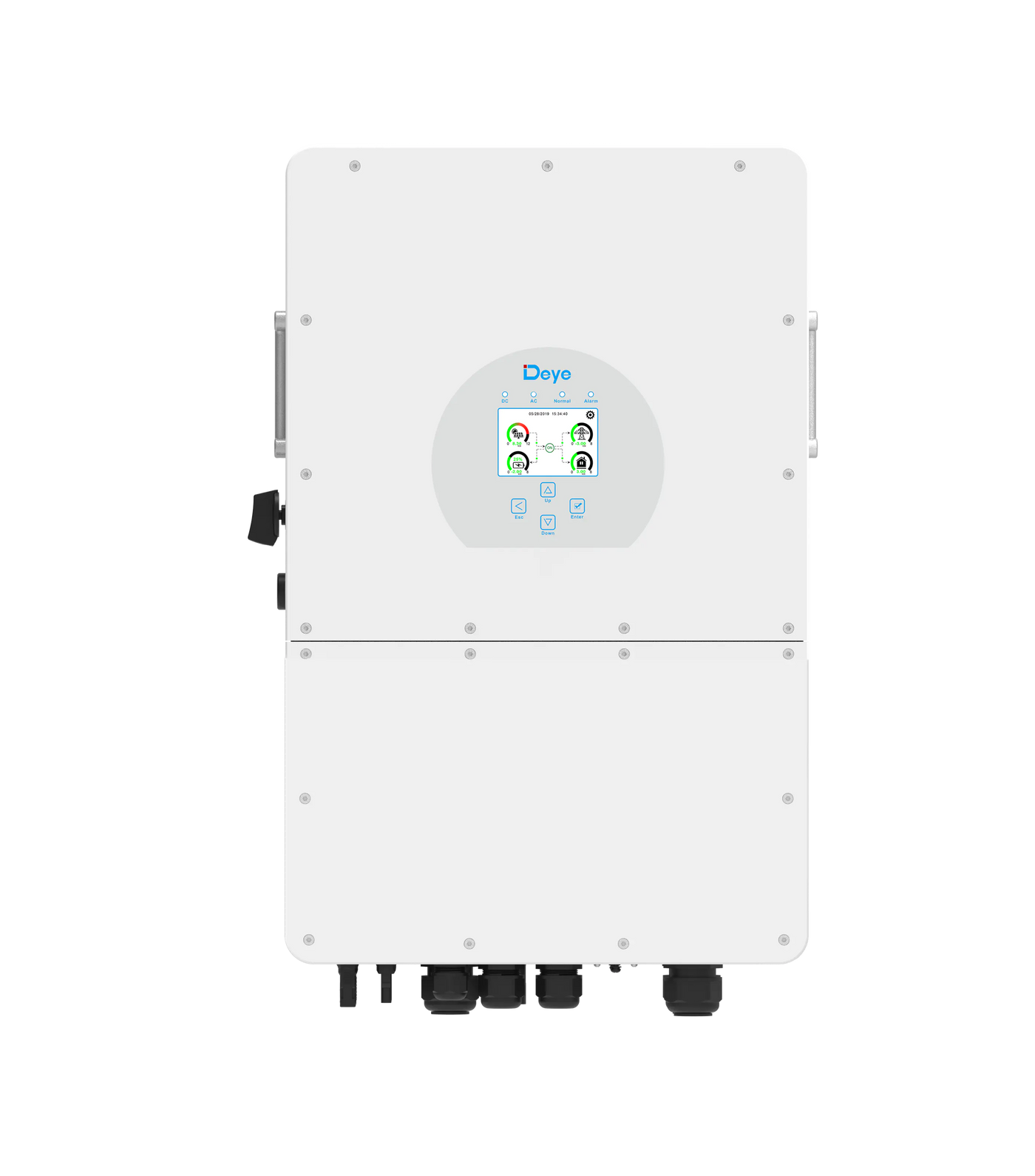

Deye SUN-12K-SG01HP3-AU-AM2 | 12kW | Three Phase | High Voltage Hybrid Inverter | HV Battery Supported:
The Deye SUN-12K-SG01HP3-AU-AM2 is a CEC Approved high-voltage three-phase hybrid inverter designed for large-scale residential and commercial solar installations. It efficiently manages energy from solar panels, batteries, and the grid, delivering high performance, reliability, and long-term energy savings.
With dual MPPT channels, high PV input capacity, and compatibility with 48–60V high-voltage batteries, this inverter ensures maximum energy harvesting and seamless integration with energy storage systems. Perfect for large residential properties, commercial buildings, or solar farms, it provides balanced three-phase output and allows real-time monitoring via Wi-Fi.
Available Model:
- SUN-12K-SG01HP3-AU-AM2
Features:
- 12kW high voltage three-phase hybrid inverter for large solar systems
- Maximum PV input power: 18kW for optimal solar generation
- Battery voltage range: 48–60V high voltage batteries compatible
- Peak efficiency up to 98.6% for maximum energy conversion
- Dual MPPT channels for optimised energy harvesting
- Balanced three-phase output for stable power distribution
- AC coupling ready for seamless integration with existing systems
- Wi-Fi and remote monitoring for real-time system management
- IP65 weatherproof rating for durable outdoor operation
- Compliant with AS/NZS 4777.2 Australian standards
- 10-year warranty
Specifications:
- Inverter Output Power: 12,000W (Three-Phase)
- Maximum PV Input Power: 18,000W
- Battery Voltage Range: 48–60V
- Maximum Efficiency: 98.6%
- MPPT Efficiency: 99.9%
- AC Coupling: Yes
- Wi-Fi Monitoring: Yes
- Weatherproof Rating: IP65
- Dimensions (W×H×D): 408×638×237mm
- Weight: 30.5kg
Note: Deye hybrid inverters must be installed by a licensed electrician.
