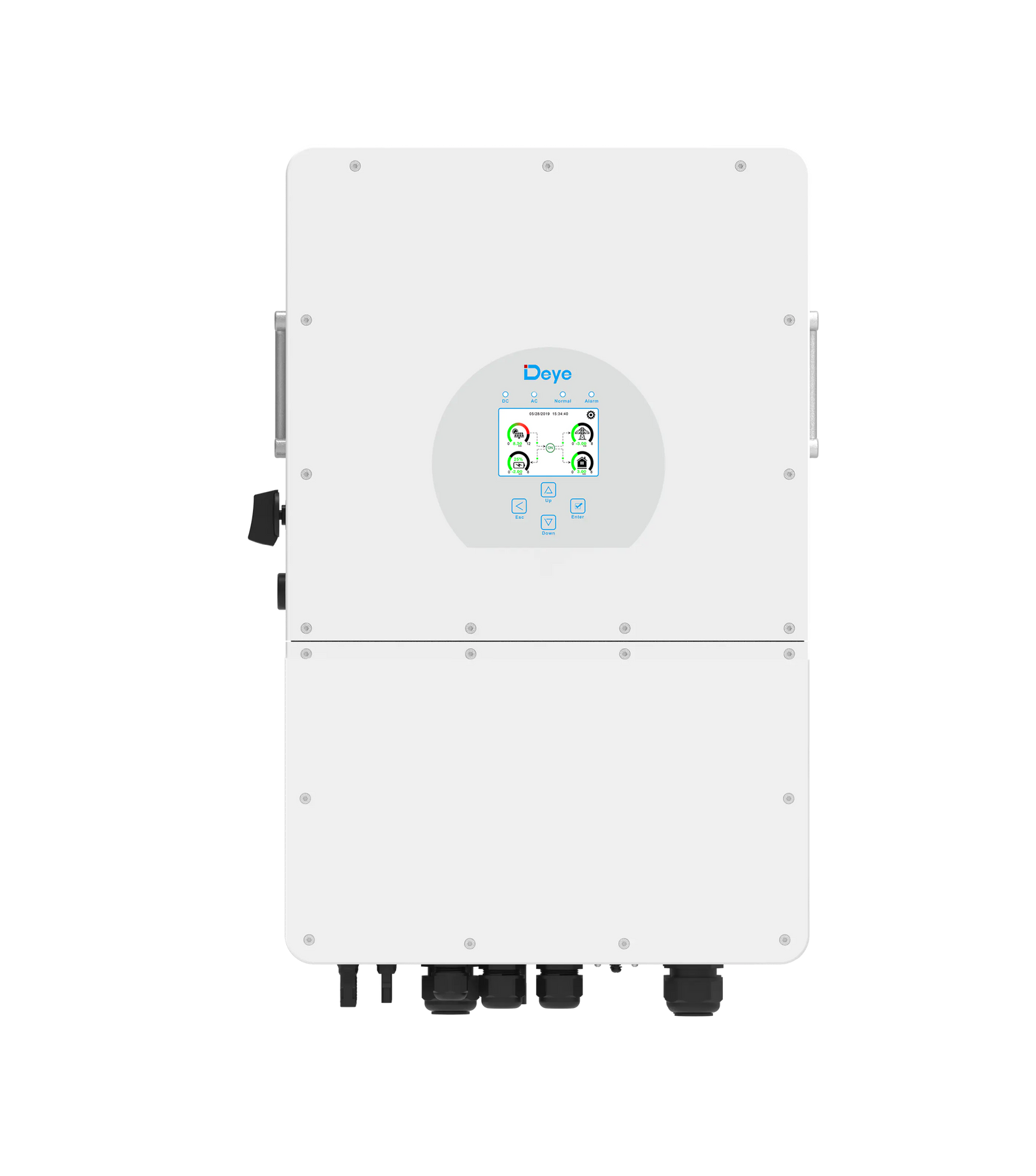

DEYE SUN-25K-SG01HP3-AU-AM2 | 25kW | High Voltage | Three Phase Hybrid Inverter | HV Battery Supported
The Deye SUN-25K-SG01HP3-AU-AM2 is a 25kW high voltage three-phase hybrid inverter, engineered for large-scale residential, commercial, and industrial solar systems. It combines solar energy generation, battery storage, and grid integration to provide reliable, high-efficiency energy conversion. Ideal for large solar installations, it ensures maximum power output, scalability, and long-term energy savings.
With dual MPPT channels, high PV input capacity, and three-phase output, this inverter delivers stable and optimised energy performance. Its weatherproof IP65 design and 10-year warranty provide durability and long-term reliability for demanding applications.
Dimensions: 408×638×237mm
Weight: 30.5kg
Features:
- 25kW High Voltage Hybrid Inverter – High output for large residential, commercial, and industrial systems
- Max PV Input Power: 37.5kW – Supports large solar arrays for optimal energy capture
- Battery Voltage Range: 48–60V – Compatible with high voltage battery systems for fast storage and reliable backup
- Maximum Efficiency: 98.6% – Minimises energy loss for superior performance and savings
- Dual MPPT Channels – Optimises energy harvesting across multiple solar arrays
- Three-Phase Power Output – Provides balanced, stable energy distribution across three phases
- AC Coupling Ready – Integrates with existing grid-tied systems, allowing future battery storage expansion
- Wi-Fi & Remote Monitoring – Real-time system monitoring and management via built-in Wi-Fi
- Weatherproof IP65 Rating – Durable outdoor operation with protection against dust, moisture, and harsh environments
- Compliant with Australian Standards – Certified to AS/NZS 4777.2 for safety, compliance, and reliability
- 10-Year Warranty
Specifications:
- Inverter Output Power: 25kW (Three-Phase)
- Max PV Input Power: 37.5kW
- Battery Voltage Range: 48–60V
- Max Efficiency: 98.6%
- MPPT Efficiency: 99.9%
- AC Coupling: Yes
- Wi-Fi Monitoring: Yes
- Weatherproof Rating: IP65
Note: Must be installed by a licensed electrician.
