Description

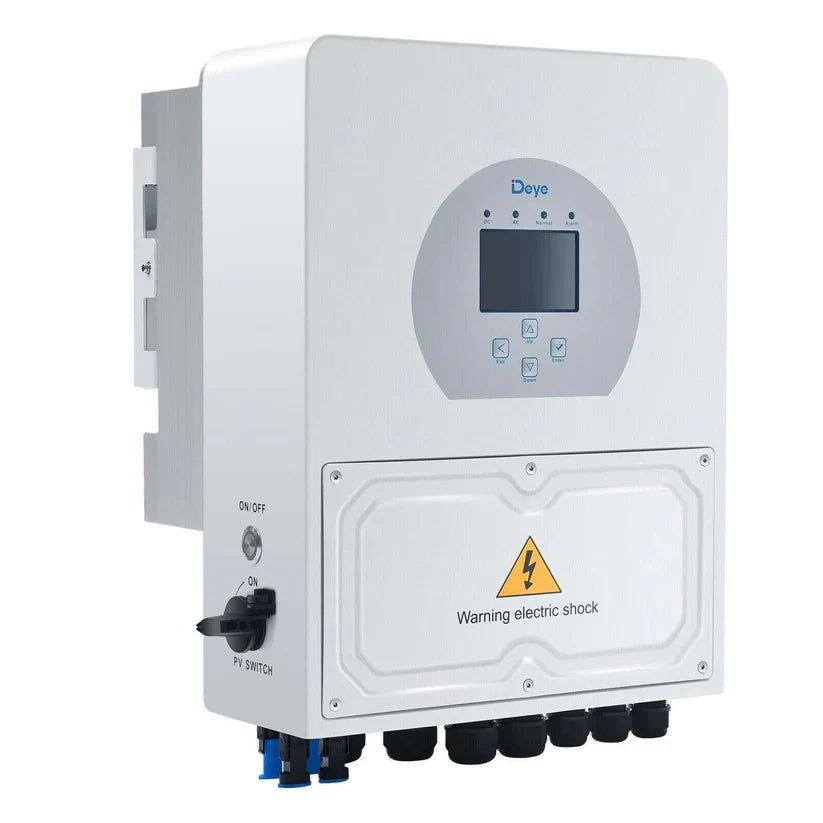

Deye SUN-14K-SG01LP1-AU | 14kW | Single Phase | 3 MPPT | Hybrid Inverter | LV Battery Supported:
The Deye SUN-14K-SG01LP1-AU is a CEC Approved single phase hybrid inverter designed for residential and light commercial solar systems. It efficiently integrates solar power generation, battery storage, and grid interaction, optimising energy usage and enhancing energy independence.
With high PV input capacity, intelligent battery management, and full compatibility with lithium-ion and lead-acid batteries, this inverter delivers reliable and efficient performance. Ideal for residential and commercial installations, it supports parallel operation and smart monitoring via Wi-Fi, GPRS, 4G, or LAN.
Available Model:
- SUN-14K-SG01LP1-AU
Features:
- Maximum efficiency of 97.6% (EU weighted: 96.5%)
- Compatible with lithium-ion and lead-acid batteries (40–60V)
- High 290A charge/discharge current for rapid energy transfer
- Triple MPPT inputs for optimal solar harvesting
- Parallel operation of up to 16 units
- Smart monitoring with touch LCD and remote connectivity
- Comprehensive protection: anti-islanding, surge, and overcurrent
- Flexible charging from diesel generator with programmable time settings
- IP65 rated for indoor and outdoor use
Specifications:
- Rated AC Output Power: 14,000W
- Maximum AC Output Power: 14,000W
- Peak Power (Off-Grid): 2× rated power (10 seconds)
- Battery Voltage Range: 40–60V
- Maximum Charge/Discharge Current: 290A
- Maximum DC Input Power: 18,200W
- Rated PV Input Voltage: 500V
- MPPT Voltage Range: 150–425V
- Operating Temp Range: -40°C to +60°C (derating above 45°C)
- Ingress Protection: IP65
Note: Deye hybrid inverters must be installed by a licensed electrician.
