Description

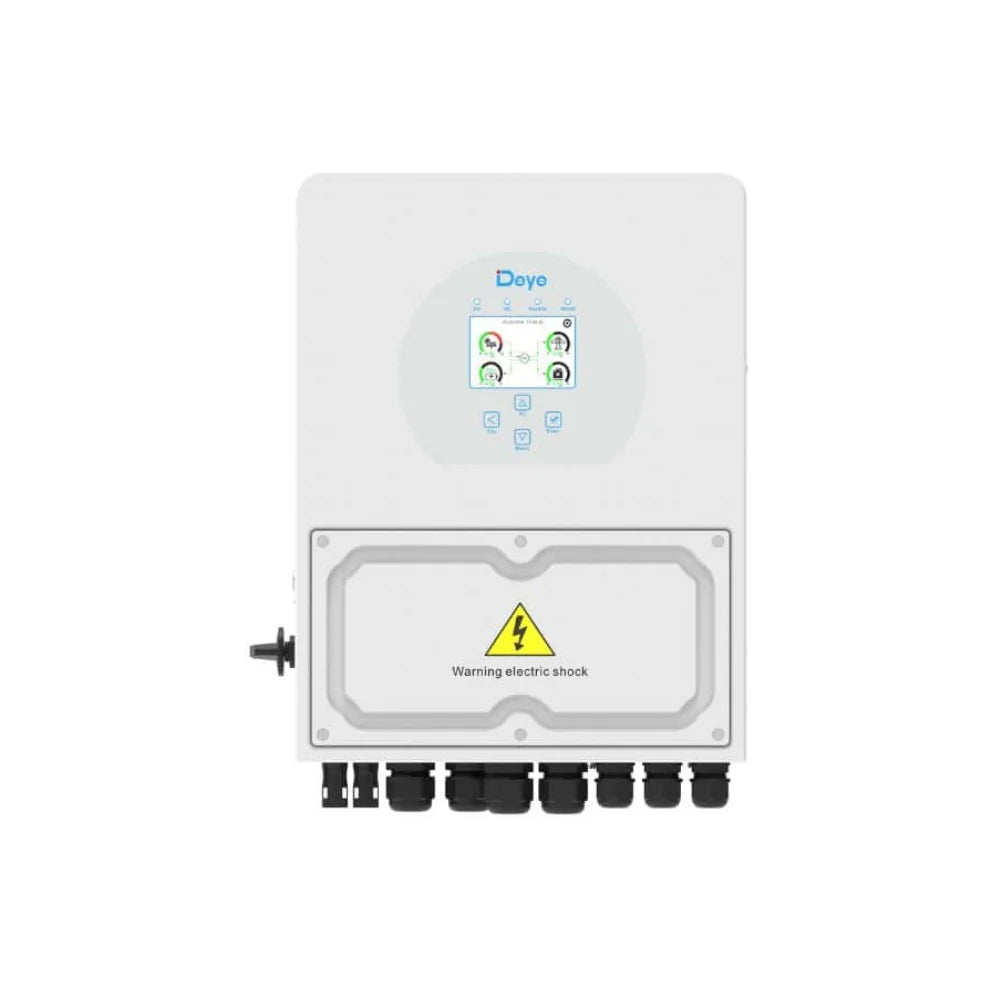

Deye SUN-16K-SG01LP1-AU | 16kW | Single Phase | 3 MPPT | Hybrid Inverter | LV Battery Supported:
The Deye SUN-16K-SG01LP1-AU is a CEC Approved single phase hybrid inverter designed for residential and light commercial solar systems. It efficiently manages energy from solar panels, batteries, and the grid, delivering reliable and adaptable performance for larger energy systems.
With high PV input capacity, intelligent battery management, and full compatibility with lithium-ion and lead-acid batteries, this inverter provides robust energy management. Ideal for residential and commercial installations, it supports parallel operation and smart monitoring via Wi-Fi, GPRS, 4G, or LAN.
Available Model:
- SUN-16K-SG01LP1-AU
Features:
- High 16kW power output for larger solar systems
- Triple MPPT inputs for optimal solar harvesting
- Compatible with lithium-ion and lead-acid batteries (40–60V)
- High 290A charge/discharge current for rapid energy transfer
- Parallel operation of up to 16 units
- Smart monitoring with touch LCD and remote connectivity
- Comprehensive protection: anti-islanding, surge, and overcurrent
- Flexible charging from diesel generator with programmable time settings
- IP65 rated for indoor and outdoor use
- 10-year warranty
Specifications:
- Rated AC Output Power: 16,000W
- Maximum AC Output Power: 16,000W
- Peak Power (Off-Grid): 2× rated power (10 seconds)
- Battery Voltage Range: 40–60V
- Maximum Charge/Discharge Current: 290A
- Maximum DC Input Power: 24,000W
- Rated PV Input Voltage: 500V
- MPPT Voltage Range: 150–425V
- Operating Temp Range: -40°C to +60°C (derating above 45°C)
- Ingress Protection: IP65
- Dimensions (W×H×D): 464×763×282mm
- Weight: 48kg
Note: Deye hybrid inverters must be installed by a licensed electrician.
