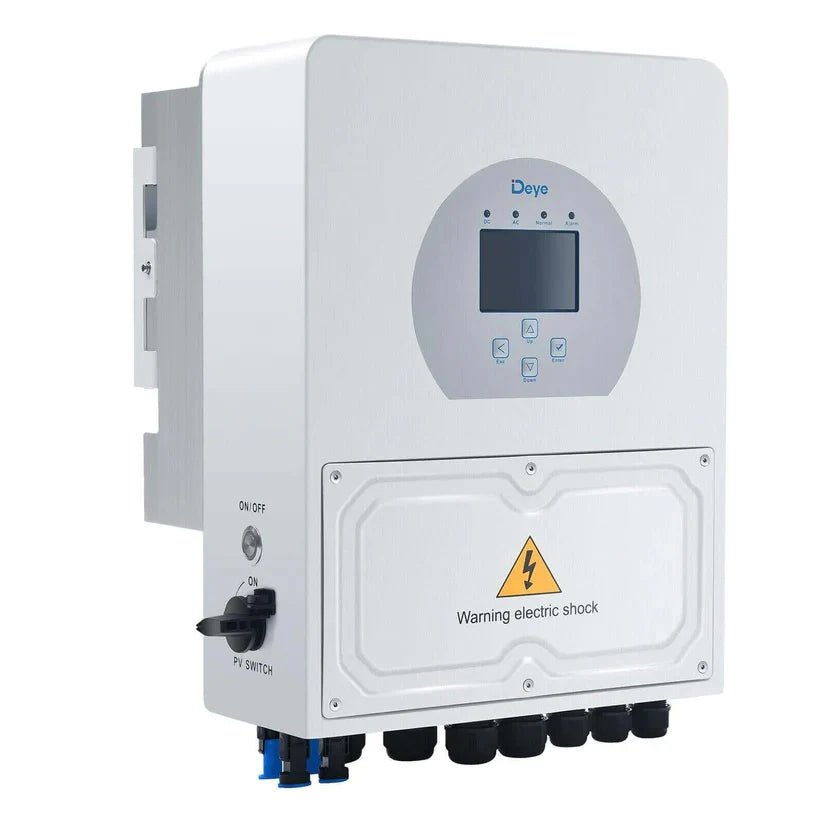

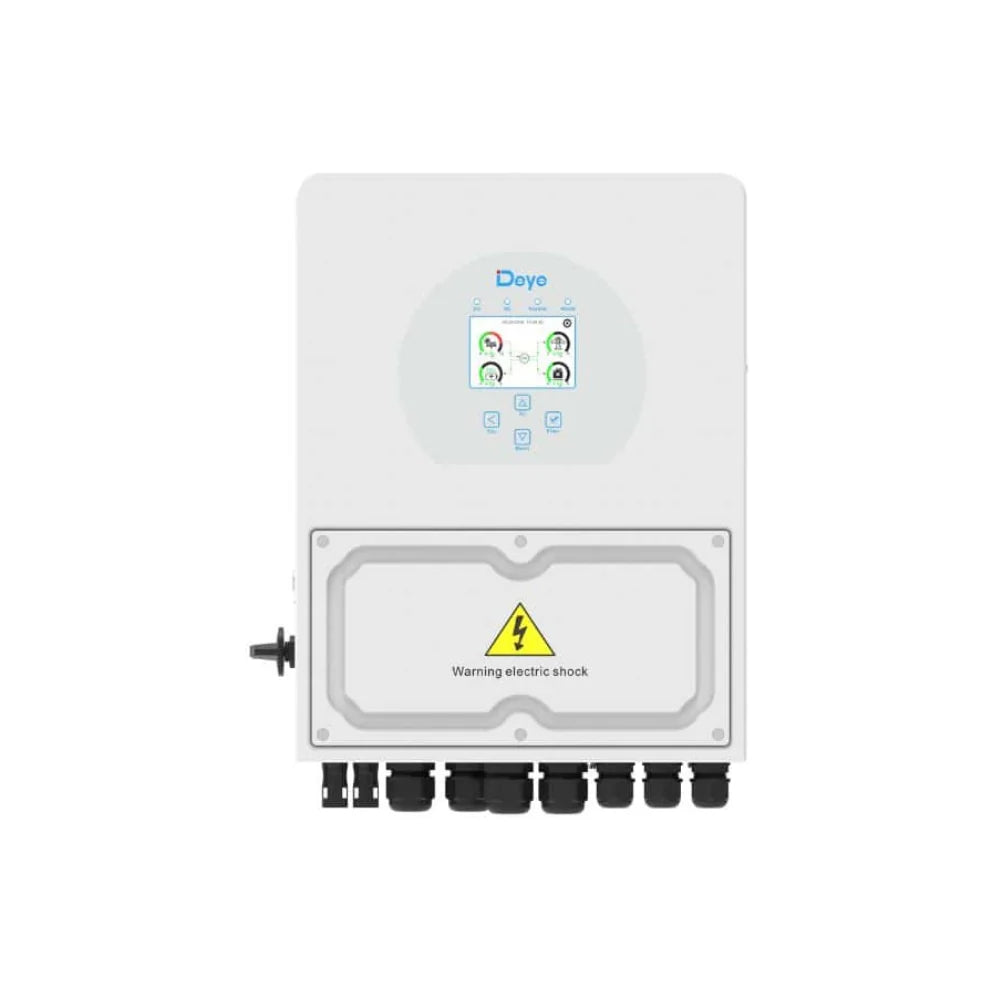

Deye SUN-3K-SG04LP1-AU | 3kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported:
The Deye SUN-3K-SG04LP1-AU is a CEC Approved single phase hybrid inverter designed for residential solar systems. It integrates solar generation, battery storage, and grid interaction to optimise energy usage and enhance energy independence.
With intelligent battery management, high PV input capacity, and full compatibility with lithium-ion and lead-acid batteries, this inverter delivers reliable and efficient performance. Ideal for residential and small commercial systems, it supports scalable parallel operation and offers smart monitoring via Wi-Fi, GPRS, 4G, or LAN.
Available Model:
- SUN-3K-SG04LP1-AU
Features:
- Hybrid functionality for solar, battery, and grid integration
- Compatible with lithium-ion and lead-acid batteries (40–60V)
- Parallel operation of up to 16 units
- Smart monitoring with touch LCD and remote connectivity
- Comprehensive protection: anti-islanding, surge, and short-circuit
- Flexible charging from diesel generator with programmable time settings
- IP65 rated for indoor and outdoor installation
- 10-year warranty
Specifications:
- Rated AC Output Power: 3,000W
- Maximum AC Output Power: 3,000W
- Peak Power (Off-Grid): 2× rated power (10 seconds)
- Battery Voltage Range: 40–60V
- Maximum Charge/Discharge Current: 70A
- Maximum DC Input Power: 4,500W
- Rated PV Input Voltage: 500V
- MPPT Voltage Range: 150–425V
- Max Efficiency: 97.6% (Euro Efficiency: 97%)
- Operating Temp Range: -45°C to +60°C (derating above 45°C)
- Ingress Protection: IP65
- Dimensions (W×H×D): 333×433×229mm
- Weight: 17kg
Note: Deye hybrid inverters must be installed by a licensed electrician.
