Description

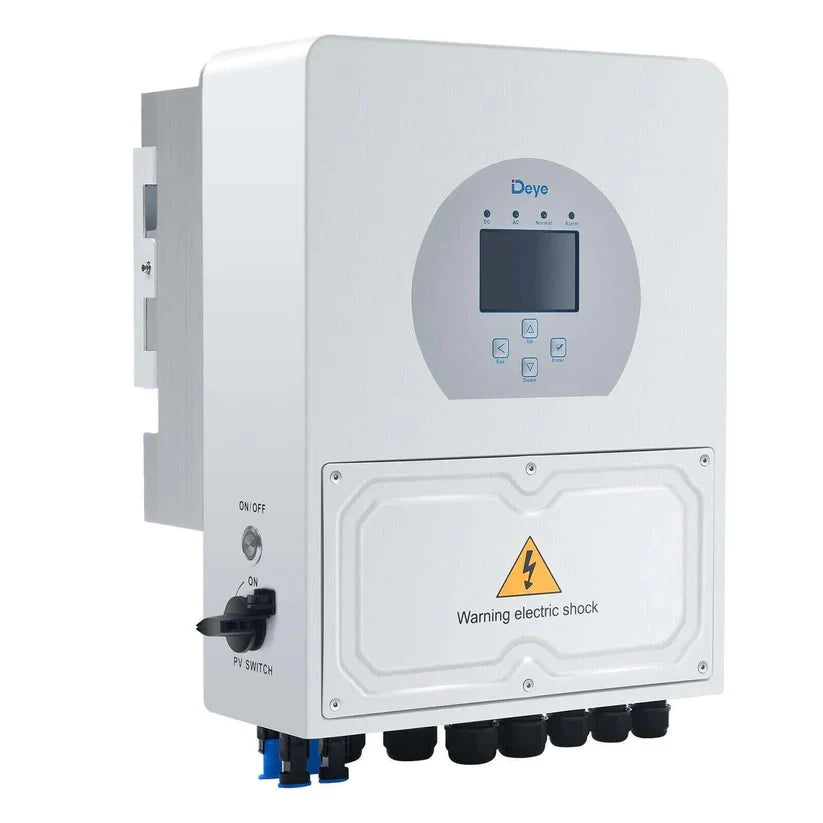

Deye SUN-5K-SG04LP1-AU | 5kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported:
The Deye SUN-5K-SG04LP1-AU is a CEC Approved single phase hybrid inverter designed for residential and light commercial solar systems. It efficiently manages energy from solar panels, batteries, and the grid — optimising energy use and enhancing energy independence.
Combining advanced functionality with robust performance, this inverter offers high PV input capacity, intelligent battery management, and compatibility with both lithium-ion and lead-acid batteries. Ideal for scalable on-grid and off-grid systems, it supports smart monitoring via Wi-Fi, GPRS, 4G, or LAN.
Available Model:
- SUN-5K-SG04LP1-AU
Features:
- Hybrid functionality for solar, battery, and grid integration
- Supports lithium-ion and lead-acid batteries (40–60V)
- High 120A charge/discharge current for rapid energy transfer
- Dual MPPT inputs for optimal solar efficiency
- Parallel operation of up to 16 units
- Smart monitoring with touch LCD and remote connectivity
- Comprehensive protection: anti-islanding, surge, and overcurrent
- Programmable charge/discharge time settings
- IP65 rated for indoor and outdoor use
Specifications:
- Rated AC Output Power: 5,000W
- Maximum AC Output Power: 5,000W
- Peak Power (Off-Grid): 2× rated power (10 seconds)
- Battery Voltage Range: 40–60V
- Maximum Charge/Discharge Current: 120A
- Maximum DC Input Power: 7,500W
- Rated PV Input Voltage: 500V
- MPPT Voltage Range: 150–425V
- Max Efficiency: 97.6% (Euro Efficiency: 97%)
- Operating Temp Range: -45°C to +60°C (derating above 45°C)
- Ingress Protection: IP65
- Dimensions (W×H×D): 333×433×229mm
- Weight: 17kg
Note: Deye hybrid inverters must be installed by a licensed electrician.
