Description
Overview

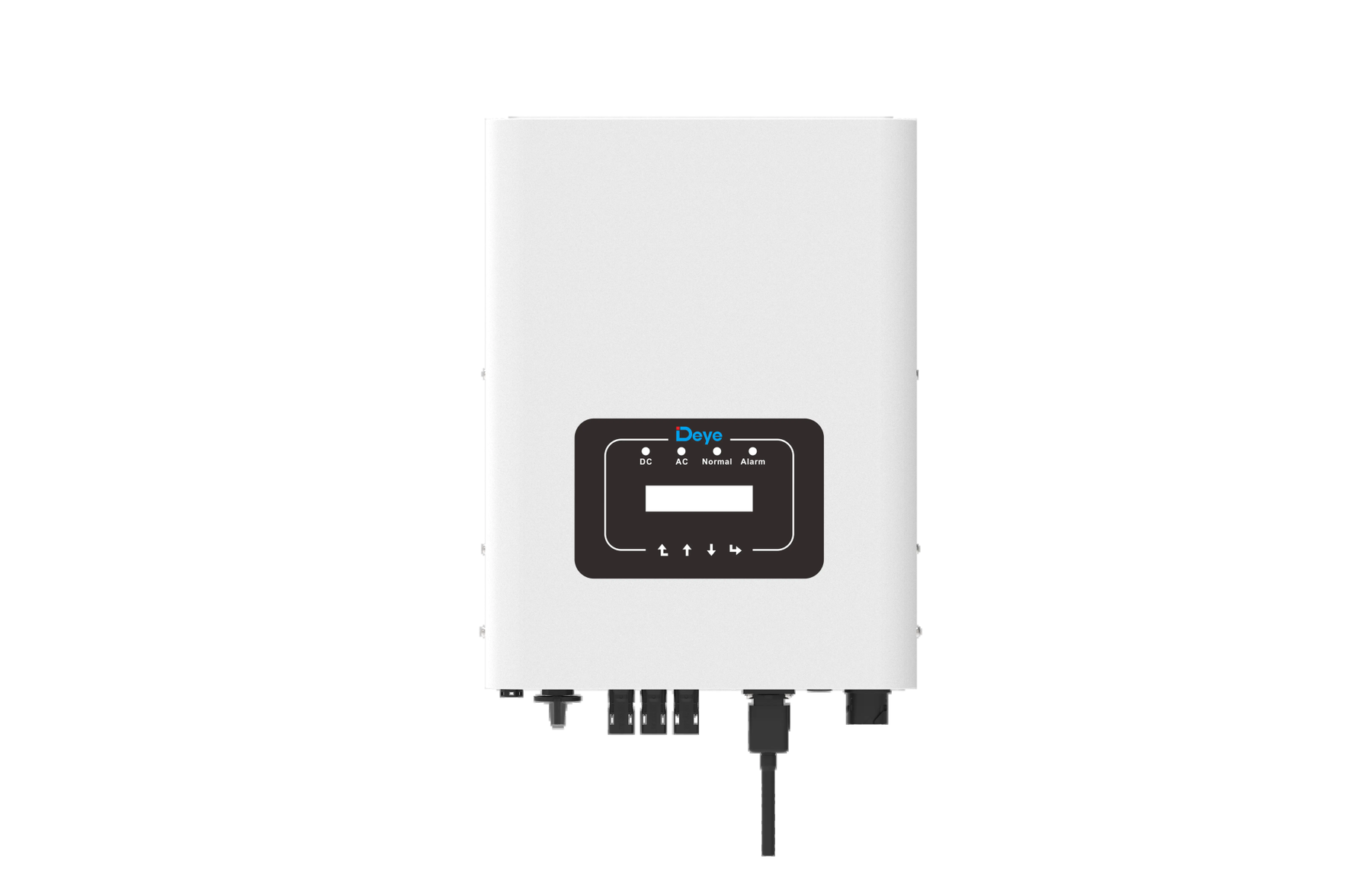

The Deye SUN-15K-G05-AU is a three-phase, grid-connected PV string inverter delivering 15 kW of rated AC output in full compliance with AS/NZS 4777.2. With 2 independent MPP trackers and a maximum efficiency of 98.5%, it is engineered to maximise energy harvest from commercial and residential solar arrays.
A low 250V start-up voltage and a wide 200-850V MPPT range let the inverter begin generating earlier in the day and adapt to a broad range of string configurations, while zero-export and VSG (Virtual Synchronous Generator) support, optional string-level monitoring and an optional anti-PID function make it a flexible, future-ready choice for the Australian grid.
Key Features
High-Efficiency Power Conversion
- Maximum efficiency up to 98.5%, Euro efficiency 98.0%
- MPPT efficiency >99% for maximum energy harvest
- Transformerless (non-isolated) topology with intelligent air cooling for sustained full-power output
Flexible PV Input & Dual MPPT
- 2 MPP trackers, 1+2 strings per tracker, up to 22.5kW PV input
- Low 250V start-up voltage and wide 200-850V MPPT operating range
- Maximum PV input voltage 1000V; up to 13+26A operating current
Grid Support & Smart Functions
- 15 kW rated AC output, 21.7A, 230V/400V (0.85Un-1.1Un) three-phase (3L/N/PE)
- Zero-export application and VSG (Virtual Synchronous Generator) support
- Optional string intelligent monitoring and optional anti-PID function
Comprehensive Protection
- Integrated AFCI (arc-fault), residual current detection and anti-islanding protection
- DC reverse-polarity, AC over-current, over-voltage and short-circuit protection
- Type II surge protection on both DC and AC; insulation impedance detection
Monitoring & Communication
- RS485 / RS232 / WiFi / LAN communication interfaces
- LCD1602 display with DC / AC / Normal / Alarm status indicators
Installation & Operating Environment
- Compact 332 × 472 × 203 mm cabinet, 15 kg, IP65 rated for outdoor installation
- Wide operating temperature range of -25°C to +65°C; altitude up to 4000m
- Certified to AS/NZS 4777.2, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/2/3/4 — backed by a 10-year warranty
Specifications
| Model | SUN-15K-G05-AU |
| Type | Three Phase Grid-Connected PV String Inverter |
| Max. PV Input Power | 22.5kW |
| Max. PV Input Voltage | 1000V |
| Start-up Voltage | 250V |
| MPPT Voltage Range | 200-850V |
| Rated PV Input Voltage | 600V |
| No. of MPP Trackers | 2 |
| No. of Strings per MPPT | 1+2 |
| Max. Operating PV Input Current | 13+26A |
| Max. Input Short Circuit Current | 19.5+39A |
| Rated AC Output Active Power | 15kW |
| Max. AC Output Apparent Power | 15kVA |
| Rated AC Output Current | 21.7A |
| Max. AC Output Current | 21.7A |
| Grid Connection Form | 3L/N/PE (Three Phase) |
| Rated Output Voltage/Range | 230V/400V (0.85Un-1.1Un) |
| Rated Grid Frequency/Range | 50Hz (45-55Hz) |
| Total Harmonic Distortion (THDi) | <3% |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Max. Efficiency | 98.5% |
| Euro Efficiency | 98.0% |
| MPPT Efficiency | >99% |
| Inverter Topology | Non-Isolated |
| Type of Cooling | Intelligent Air Cooling |
| Noise | ≤40dB(A) |
| Communication Interface | RS485 / RS232 / WiFi / LAN |
| Display | LCD1602 |
| Protection Features | AFCI, Anti-islanding, Residual Current Detection, DC Reverse Polarity, AC Overcurrent/Overvoltage/Short Circuit, Thermal, Insulation Impedance Detection |
| Surge Protection Level | Type II (DC), Type II (AC) |
| DC Switch | Optional |
| Ingress Protection (IP) Rating | IP65 |
| Operating Temperature Range | -25°C to +65°C |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 4000m |
| Dimensions (W×H×D) | 332×472×203mm |
| Weight | 15kg |
| Safety / Grid Standard | AS/NZS 4777.2, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/2/3/4 |
| Warranty | 10-Year Product Warranty |
