Description
Overview

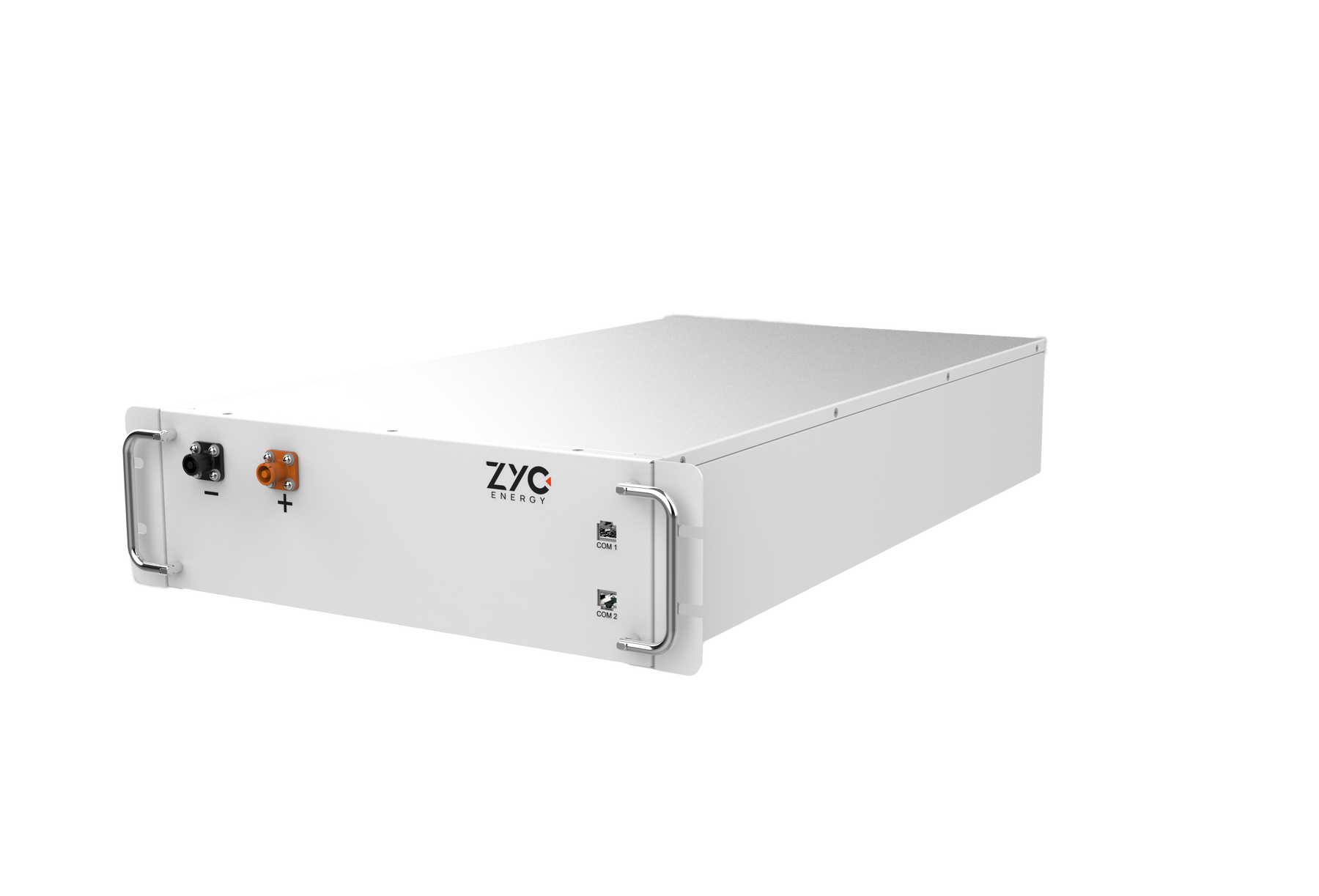

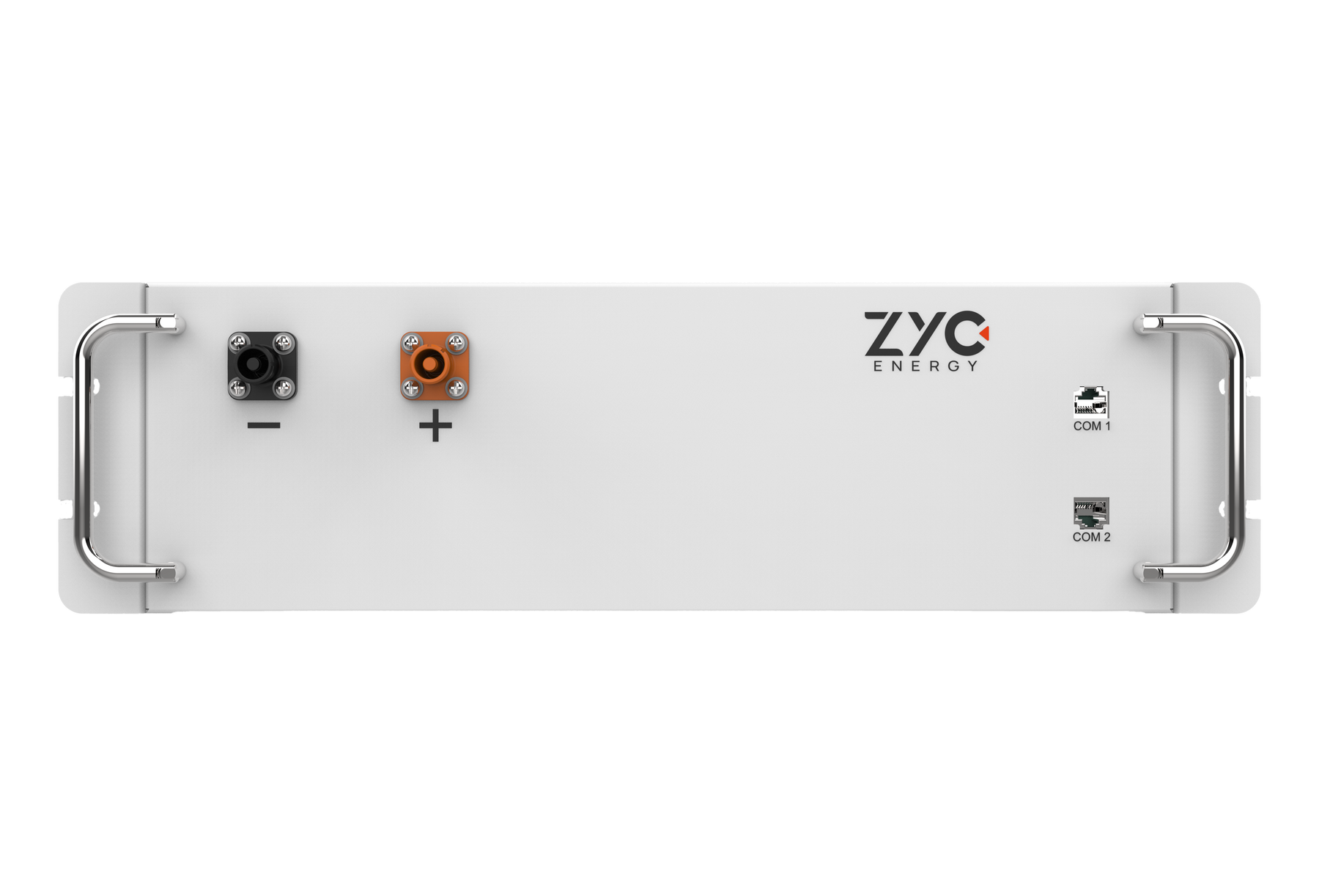

The ZYC Simpo HV Pro is a high-voltage LiFePO₄ battery module delivering 8.06 kWh (8064 Wh) of energy at 76.8 V nominal, engineered for commercial & industrial (C&I) energy storage. Built around lithium iron phosphate (LFP) cells and paired with ZYC's dedicated PDU, each module stacks into a scalable rack for flexible, high-capacity deployments.
Certified to VDE-AR-E 2510-50 and engineered with advanced cell-level safety, the Simpo HV Pro scales from 4 to 11 modules per rack (32.3–88.7 kWh) with up to 16 racks in parallel. It supports on-grid, off-grid and backup applications, remote monitoring via the ZYC Assist app and ZYC Portal, and black-start capability for rapid, independent recovery during grid outages.
Key Features
High-Performance Battery Design
- 8.06 kWh (8064 Wh) usable energy per module
- Safe lithium iron phosphate (LiFePO₄) chemistry with 105 Ah cells
- 76.8 V nominal voltage (60–87.6 V operating range)
- ≥95% round-trip efficiency
Power & Scalability
- 105 A maximum continuous current (1C); 150 A peak (5 s)
- Scalable from 4 to 11 modules per rack (32.3–88.7 kWh)
- Up to 16 racks in parallel for large-scale C&I systems
- Plug-and-play modules with a pre-configured distribution unit (PDU)
Integrated Safety & Management
- Advanced cell-level safety architecture
- Integrated BMS with real-time voltage, current, temperature & state-of-charge monitoring
- Black-start capability for off-grid power-up
- VDE-AR-E 2510-50 certified to one of Europe's most demanding safety standards
Installation & System Integration
- Compact 490 × 135 × 786 mm module (65 kg)
- Simple stack-and-bolt installation with the PDU mounted on top
- CAN / RS485 / Modbus TCP/IP communication
- Remote monitoring via the ZYC Assist app and ZYC Portal
Wide Inverter Compatibility
- Compatible with leading hybrid inverters — Deye, GoodWe, Solis, SMA & Solinteg
- See the Inverter Configuration List for approved models and rack sizing
Operating Environment
- Operating temperature: -20°C to 55°C
- Humidity: <95% (non-condensing)
- Altitude: ≤3000 m
- IP20 rated for indoor installation
- 10-year performance warranty
Specifications
| Model | SIMPO HV Pro Module 8.06 |
| Battery Cell Chemistry | LiFePO₄ (LFP) |
| Nominal Voltage | 76.8V |
| Operating Voltage Range | 60~87.6V |
| Nominal Energy | 8064Wh (8.06kWh) |
| Usable Energy | 8064Wh (8.06kWh) |
| Cell Capacity | 105Ah |
| Max Continuous Charge/Discharge Current | 105A (1C) |
| Peak Current | 150A (5s) |
| Width | 490mm |
| Height | 135mm |
| Depth | 786mm |
| Weight | 65kg |
| Communication | CAN / RS485 / Modbus TCP/IP |
| Working Temperature | -20~55°C |
| Humidity | <95% (Non-Condensing) |
| Altitude | ≤3000m |
| IP Rating | IP20 |
| Cooling Type | Natural |
| Efficiency | ≥95% |
| Scalability | 4–11 modules per rack (32.3–88.7kWh); up to 16 racks in parallel |
| Certifications | IEC62619, UN38.3, CE, VDE-AR-E 2510-50, IEC62040, EN13849, CEC |
| Warranty | 10-Year Performance Warranty |
