Description
Overview

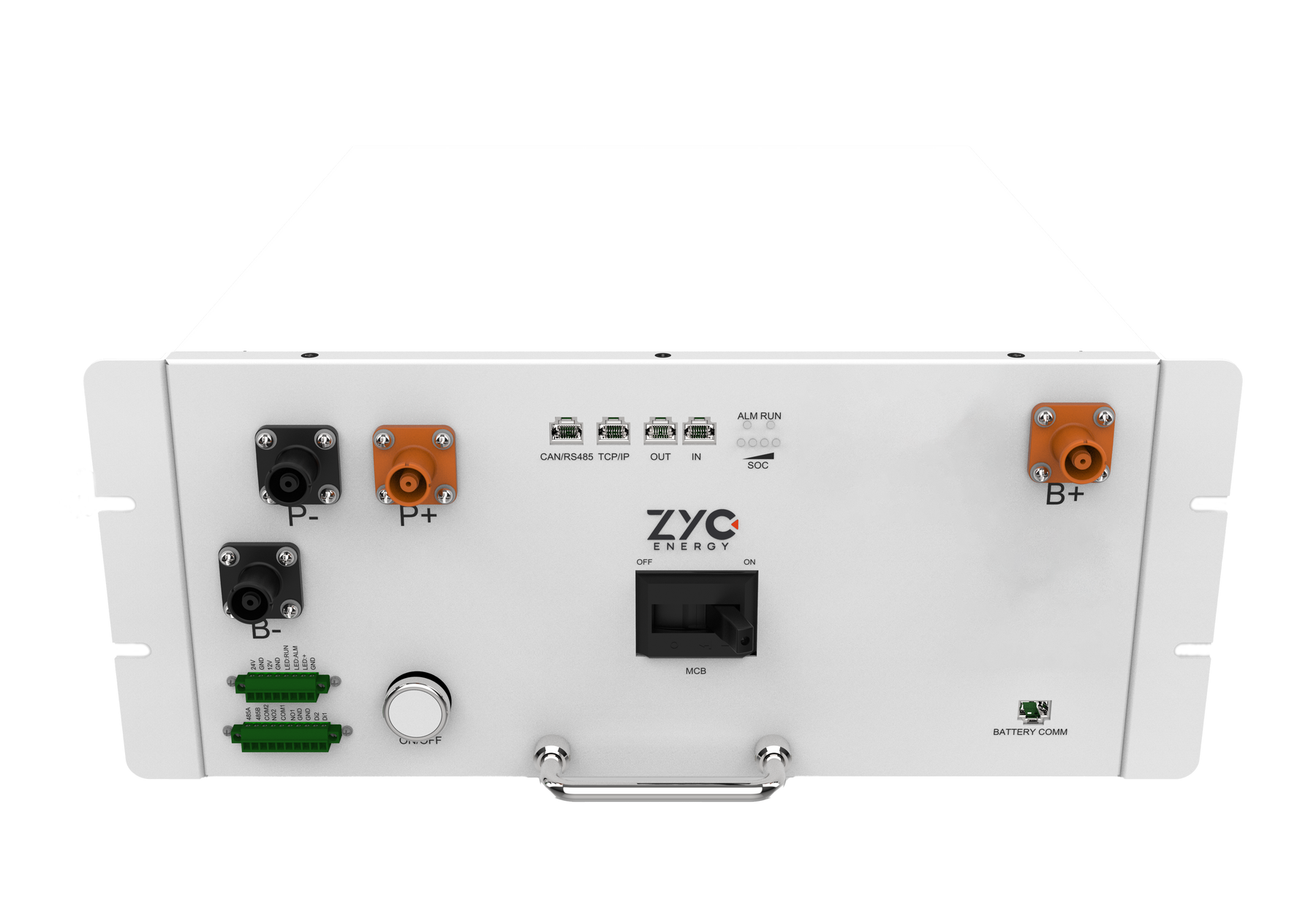

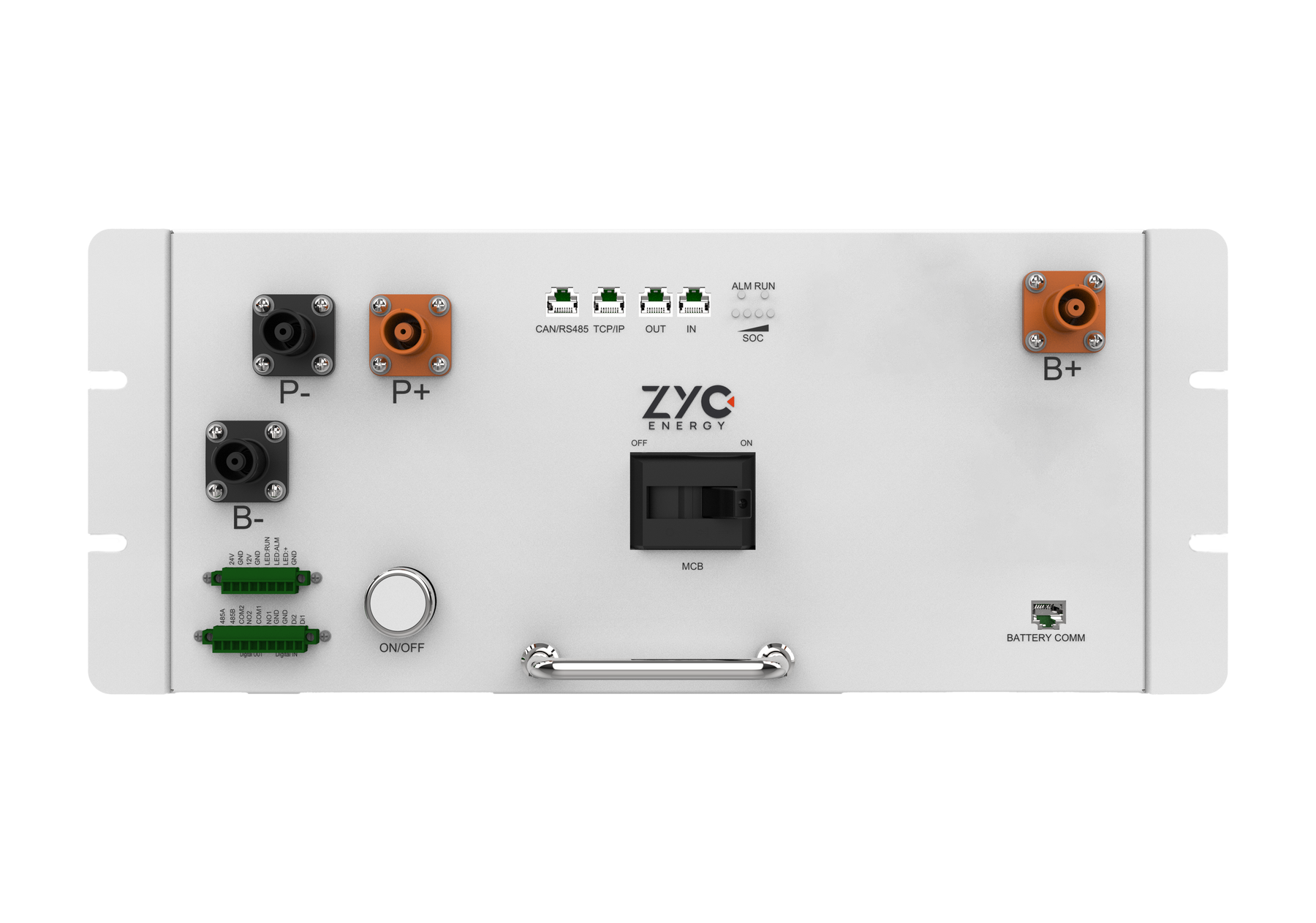

The ZYC Simpo HV Pro Power Distribution Unit (PDU) is the control and power-distribution hub of the ZYC Simpo HV Pro high-voltage battery energy storage system. It integrates the master battery management system (BMS), the main circuit breaker (MCB) and the high-voltage power terminals that link the battery module stack to the inverter (PCS).
Rated for 200–1000 Vdc operation at up to 250 A, one PDU controls a rack of up to 11 Simpo HV Pro modules and coordinates protection, communication, black-start and remote monitoring — with up to 16 racks connected in parallel for large commercial & industrial deployments.
Key Features
System Control & Protection
- Integrated master BMS with real-time RUN / ALM / SOC indication
- Built-in main circuit breaker (MCB) for system isolation
- Manages a rack of up to 11 Simpo HV Pro battery modules
High-Voltage Power Distribution
- 200–1000 Vdc operating range at up to 250 A
- P+ / P− power terminals to the inverter (PCS)
- B+ / B− power terminals to the battery module stack
Communication & Scalability
- CAN / RS485 (INV) and Modbus TCP/IP (ETH) to the inverter
- Parallel IN / OUT ports for up to 16 racks in parallel
- Remote monitoring via the ZYC Assist app and ZYC Portal
Black Start Capability
- Independent system power-up in off-grid scenarios
Installation & System Integration
- Compact 490 × 200 × 545 mm unit, 15 kg
- Mounts on top (indoor) or bottom (outdoor) of the module stack
- Plug-and-play with the Simpo HV Pro pre-configured cabling
- Part of a system certified to VDE-AR-E 2510-50, IEC62619, UN38.3, CE, IEC62040 & EN13849
Operating Environment
- Operating temperature: -20°C to 65°C
- IP20 rated for indoor installation
- Altitude: ≤3000 m
Specifications
| Model | SIMPO HV Pro PDU |
| Type | Power Distribution Unit (PDU) with integrated BMS |
| Operating Voltage Range | 200~1000Vdc |
| Maximum Current | 250A |
| Power Terminals | P+/P− (to inverter), B+/B− (to battery) |
| Communication | CAN / RS485 / Modbus TCP/IP |
| Parallel Capability | Up to 16 racks in parallel |
| Width | 490mm |
| Height | 200mm |
| Depth | 545mm |
| Weight | 15kg |
| Working Temperature | -20~65°C |
| IP Rating | IP20 |
| Altitude | ≤3000m |
| Certifications | IEC62619 |
| Warranty | 10-Year Product Warranty |
